Kia Carens: Storage compartment / Luggage tray

Kia Carens RP (2013-2018) Owners Manual / Features of your vehicle / Storage compartment / Luggage tray

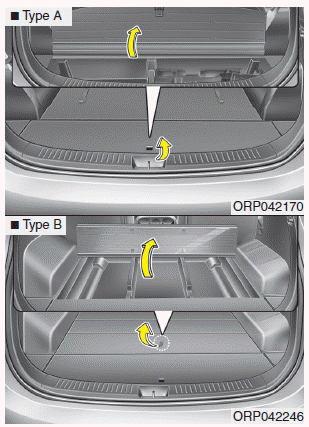

You can place a first aid kit, a reflector triangle (front tray), tools, etc. in the box for easy access.

• Grasp the handle on the top of the cover and lift it.

Sunglass holder

To open the sunglass holder, press the cover and the holder will slowly open. Place your sunglasses in the compartment door with the lenses facing out. Push to close. WARNING Do not keep objects ...

Floor under tray

The floor under tray can be used for storing small items.Grasp the handle on top of the cover and lift it. ...
