Kia Carens: Automatic Transaxle Control System / Line Pressure Control Solenoid Vale Schematic diagrams

Kia Carens RP (2013-2018) Service Manual / Automatic Transaxle System / Automatic Transaxle Control System / Line Pressure Control Solenoid Vale Schematic diagrams

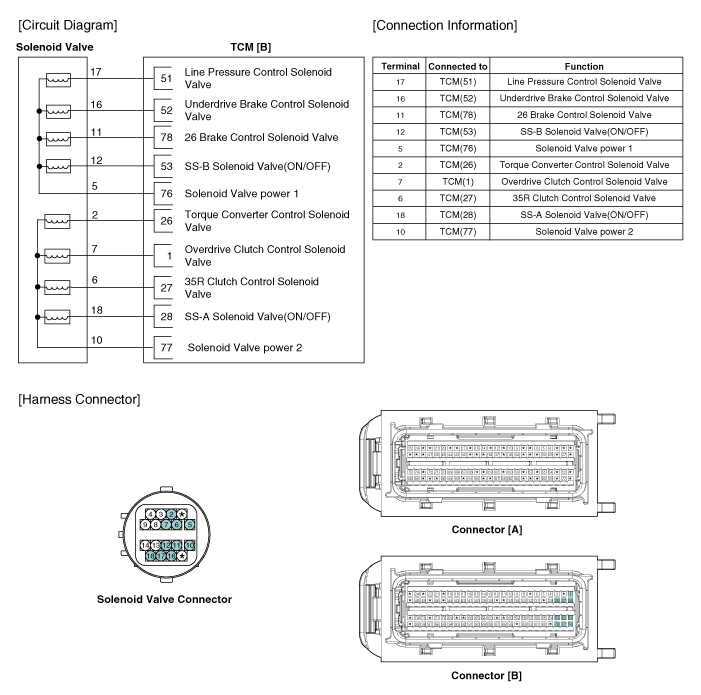

Circuit Diagram

Line Pressure Control Solenoid Vale Description and operation

Description • Line pressure control solenoid valve is a Variable Force Solenoid (VFS) type. • When TCM supplies variable curren ...

Line Pressure Control Solenoid Vale Repair procedures

Inspection 1. Turn ignition switch OFF. 2. Remove the air cleaner assembly. (Refer to Engine Mechanical System - "Air Clea ...
