Kia Carens: Automatic Transaxle Control System / Line Pressure Control Solenoid Vale Repair procedures

Kia Carens RP (2013-2018) Service Manual / Automatic Transaxle System / Automatic Transaxle Control System / Line Pressure Control Solenoid Vale Repair procedures

Inspection
1.
Turn ignition switch OFF.
2.
Remove the air cleaner assembly.
(Refer to Engine Mechanical System - "Air Cleaner")
3.
Disconnect the solenoid valve connector (A).

4.
Measure the resistance between power terminal (5) and signal terminal (17).
Specification : 5.1 ± 0.3 Ω

Removal

Maintain clean condition so that foreign substance does not get into the automatic transaxle.
Use a coated apron, latex gloves, and stainless tray to prevent foreign substance from getting into the transaxle.
1.
Remove the under cover.
(Refer to Engine Mechanical System - "Engine Room Under Cover")
2.
Remove the ATF drain plug (A), allow the fluid to drain out and then reinstall the drain plug.
Tightening torque:
33.3 ~ 43.1 N.m (3.4 ~ 4.4 kgf.m, 24.6 ~ 31.8 lb-ft)


The existing ATF drain plug gasket must be replaced with a new one. (Do not reuse it.)
ATF can be reused. Collect it in a clean beaker.
3.
Remove the air cleaner assembly.
(Refer to Engine Mechanical System - "Air Cleaner")
4.
Remove the bracket (A) and the air breather hose (B).
Tightening torque:
9.8 ~ 11.8 N.m (1.0 ~ 1.2 kgf.m, 7.2 ~ 8.7 lb-ft)

5.
Lift the vehicle after loosening valve body cover upper bolts.
6.
Remove the valve body cover (A) by loosening bolts.
Tightening torque:
11.8 ~ 13.7 N.m (1.2 ~ 1.4 kgf.m, 8.7 ~ 10.1 lb-ft)

7.
Remove the solenoid valve harness (A) and oil temperature sensor (B) after removing the bolts.
Tightening torque:
9.8 ~ 11.8 N.m (1.0 ~ 1.2 kgf.m, 7.2 ~ 8.7 lb-ft)

8.
Remove solenoid valve support bracket (A).
Tightening torque:
9.8 ~ 11.8 N.m (1.0 ~ 1.2 kgf.m, 7.2 ~ 8.7 lb-ft)

9.
Remove the line pressure control solenoid valve (A).

Installation
1.
Install in the reverse order of removal.

The existing valve body cover gasket (A) must be replaced with a new one. (Do not reuse it.)

2.
Perform the procedures below after installing.
(1)
Refill the automatic transaxle with fluid.
(Refer to Hydraulic System - "Fluid")
(2)
Clear the diagnostic trouble codes (DTC) using the KDS/GDS. Disconnecting the battery negative terminal will not clear the DTCs. Clear DTCs using the KDS/GDS at all times.
(3)

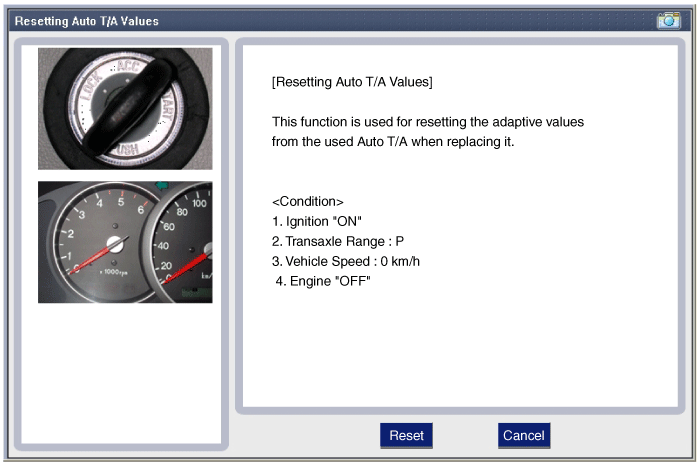

Reset the automatic transaxle adaptive values using the KDS/GDS.

(4)
Perform the TCM adaptive values learning procedure.
(Refer to Automatic Transaxle Control System - "Adjustment")
(5)
After installing, check for leakage of coolant or fluid from hose connection during engine start.
