The system may not operate when:

The ISG related sensors or system error occurs.

The following will happen:

✽ NOTICE

WARNING

When the engine is in Idle Stop mode, it's possible to restart the engine without the driver taking any action.

Before leaving the car or doing anything in the engine room area, stop the engine by turning the ignition switch to the LOCK/OFF position or removing the ignition key.

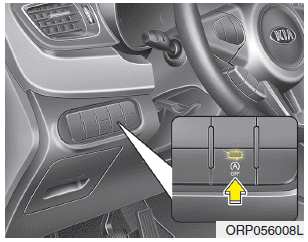

ISG system deactivation
If you wish to deactivate the ISG system, press the ISG OFF button. The light on the ISG OFF button will illuminate and a message “Auto Stop System OFF” will appear on the LCD display. If ...
