Kia Carens: ISG (Idle Stop and Go) system / ISG system deactivation

Kia Carens RP (2013-2018) Owners Manual / Driving your vehicle / ISG (Idle Stop and Go) system / ISG system deactivation

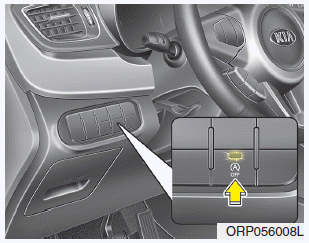

If you wish to deactivate the ISG system, press the ISG OFF button. The light on the ISG OFF button will illuminate and a message “Auto Stop System OFF” will appear on the LCD display.
If you press the ISG OFF button again, the system will be activated and the light on the ISG OFF button will turn off.

Condition of ISG system operation

The ISG system will operate under the following condition: - The driver’s seat belt is fastened. - The driver’s door and engine hood are closed. - The brake vaccum pressure is adequate. - The batt ...

ISG system malfunction

The system may not operate when: The ISG related sensors or system error occurs. The following will happen: The yellow AUTO STOP () indicator on the instrument cluster will stay on after blinking ...
