Kia Carens: Indicators And Gauges / Instrument Cluster Schematic diagrams

Kia Carens RP (2013-2018) Service Manual / Body Electrical System / Indicators And Gauges / Instrument Cluster Schematic diagrams

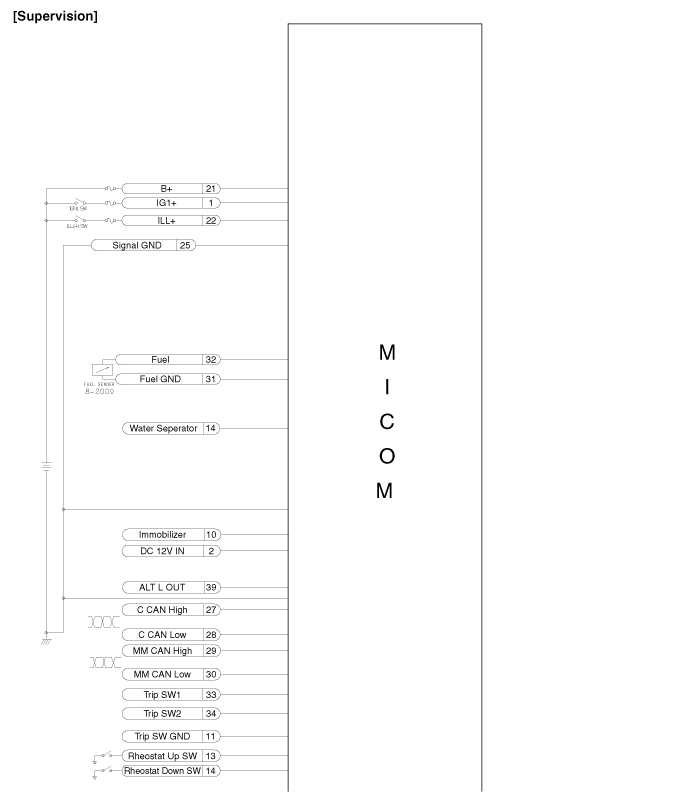

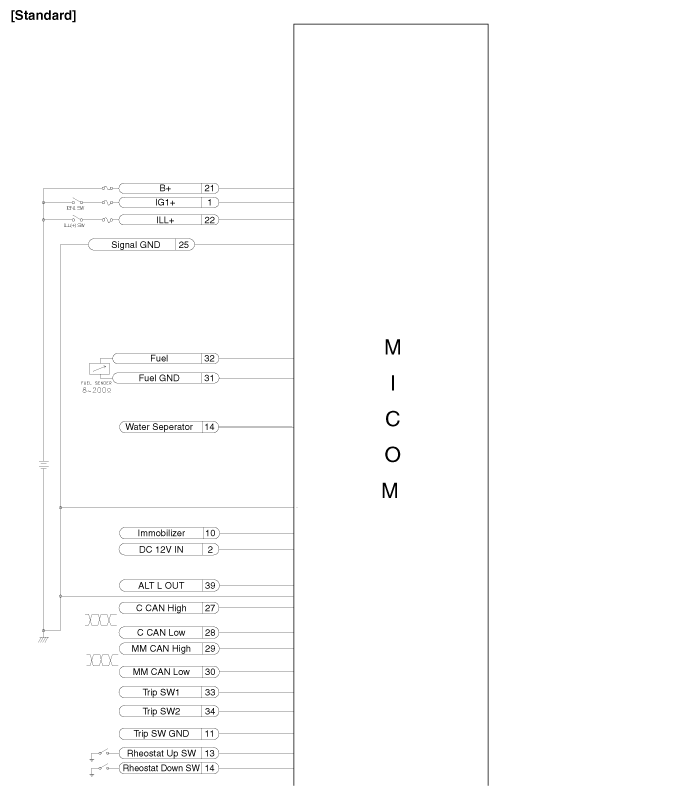

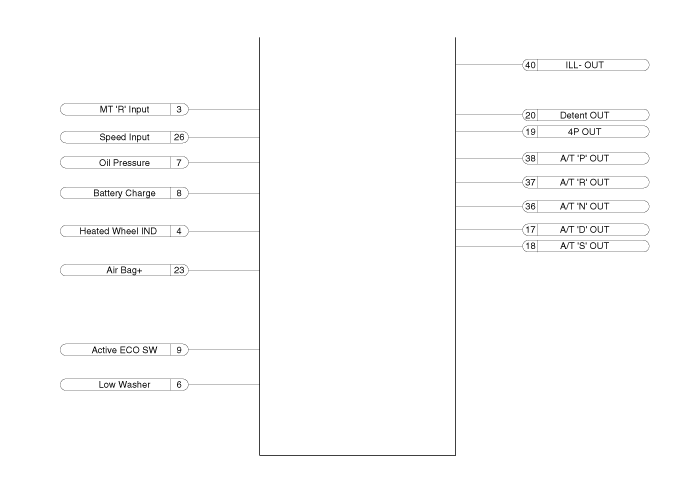

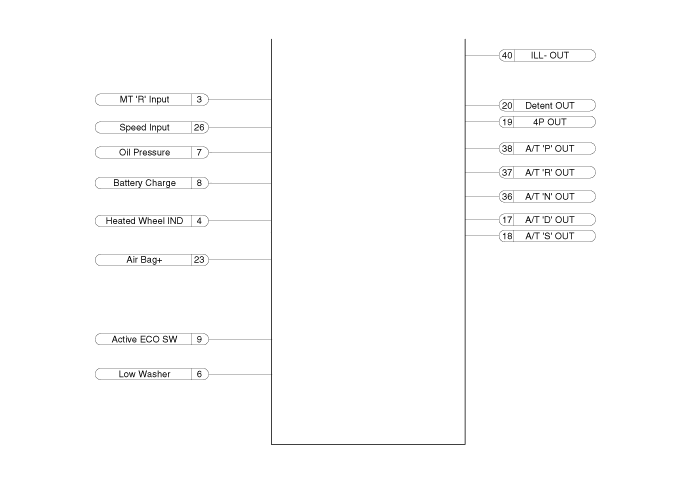

Circuit Diagram
