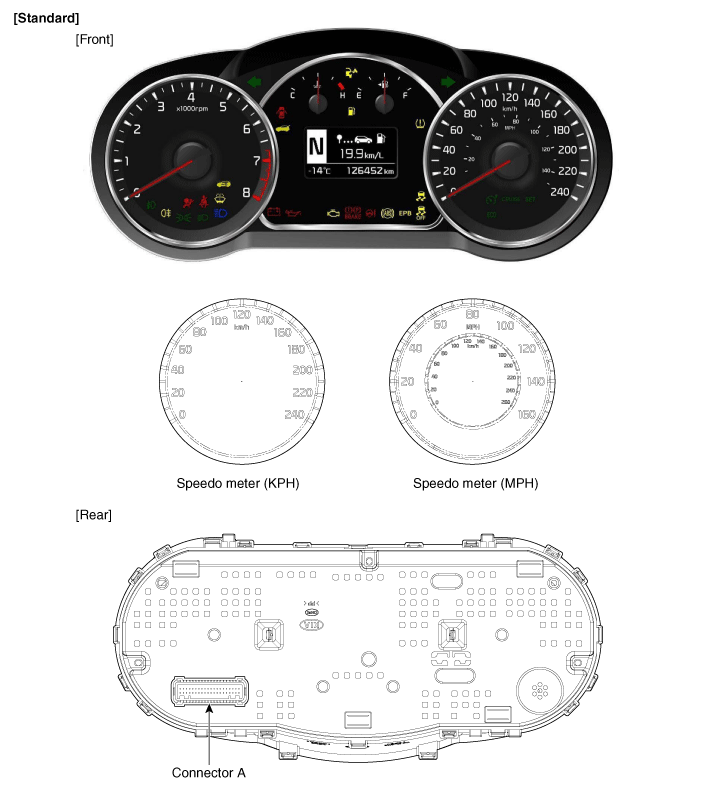

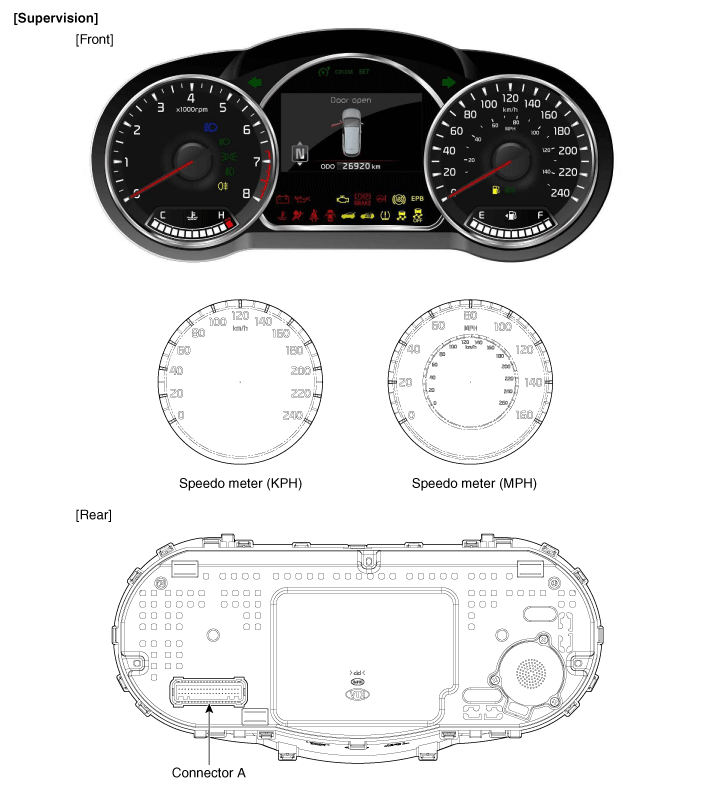

Components

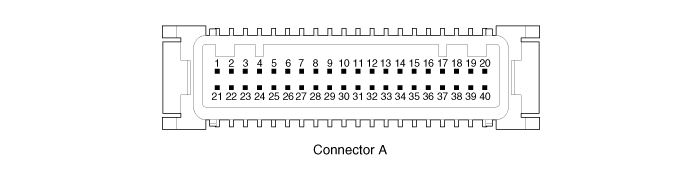

Connector Pin Information
No.
Description
Remark
No.
Description
Remark
1
IGN 1
Input
21
Battery (+)
Input
2
DC 12V input (ISG only)
Input
22
Illumination (+)
Input
3
M/T 'R' input
Input
23
Airbag (+)
Input
4
Heated wheel indicator
Input
24
-
-
5
-
-
25
Signal 1 ground
Ground
6
Low washer level
Input
26
Speed input (-)  (M/T)
Input
7
Oil pressure switch
Input
27
C CAN high
Input/Output
8
ALT L input
Input
28
C CAN low
Input/Output
9
Active ECO switch
Input
29
M CAN high
Input/Output
10
Immobilizer
Input
30
M CAN low
Input/Output
11
Trip switch (-)
Ground
31
Fuel sender (-)
Ground
12
-
-
32
Fuel sender (+)
Input
13
Rheostat up swtich
Input
33
Trip switch 1 (+)
Input
14
Rheostat down swtich
Input
34
Trip switch 2 (+)
Input
15
-
-
35
-
-
16
Water seperator
Input
36
A/T 'N' output (+)
Output
17
A/T 'D' output (+)
Output
37
A/T 'R' output (+)
Output
18
A/T 'S' output (+)
Output
38
A/T 'P' output (+)
Output
19
4P output (-)
Output
39
ALT L output (ISG only)
Output
20
Detent output (+)
Output
40
Illumination (-)
Output

※ Trip switch 1 : GROUP, MODE, FLEX STEER
Trip switch 2 : CANCEL, SET, RESUME, CRUISE, SPEED LIMITER

Troubleshooting
Troubleshooting Symptom Possible cause Remedy Speedometer does not operate Cluster fuse (10A) blown Check ...

Instrument Cluster Schematic diagrams
Circuit Diagram ...
