Kia Carens: Engine Control System / Injector Schematic diagrams

Kia Carens RP (2013-2018) Service Manual / Engine Control / Fuel System / Engine Control System / Injector Schematic diagrams

Circuit Diagram

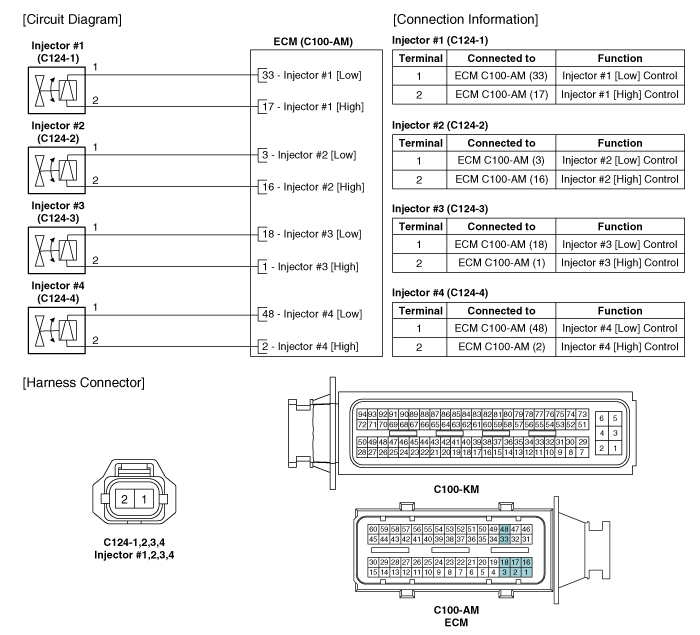

(M/T)

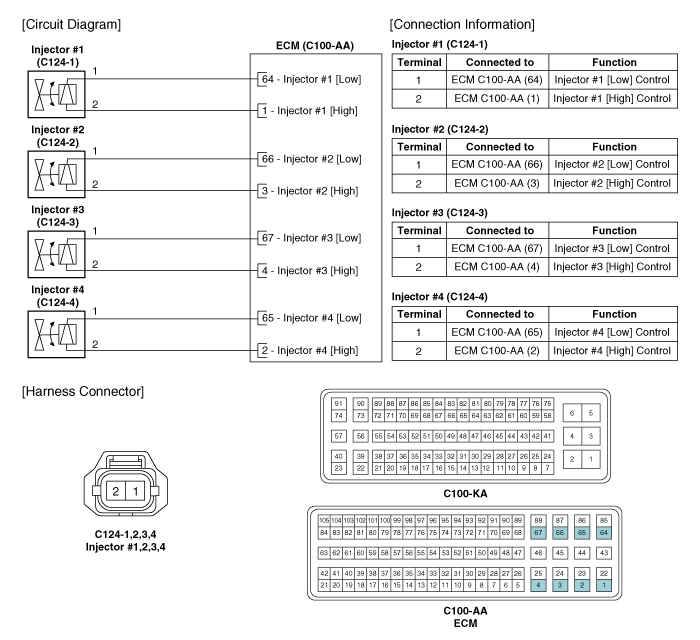

(A/T)

Injector Troubleshooting
Signal Waveform The three waveforms below are taken from the #1 and #4 injectors. The top waveform is from the high side (feed side) of the #1 and #4 injectors, while the middle ...

Injector Repair procedures
Inspection 1. Turn the ignition switch OFF. 2. Disconnect the injector connector. 3. Measure resistance b ...
