Kia Carens: ENGINE START/STOP button / Illuminated engine start/stop button

Kia Carens RP (2013-2018) Owners Manual / Driving your vehicle / ENGINE START/STOP button / Illuminated engine start/stop button

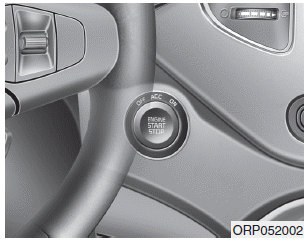

Whenever the front door is opened, the engine start/stop button will illuminate for your convenience. The light will go off after about 30 seconds when the door is closed. It will also go off immediately when the theft-alarm system is armed.

ENGINE START/STOP button
...

Engine start/stop button position
...
