Kia Carens: Engine Control System / Heated Oxygen Sensor (HO2S) Schematic diagrams

Kia Carens RP (2013-2018) Service Manual / Engine Control / Fuel System / Engine Control System / Heated Oxygen Sensor (HO2S) Schematic diagrams

Circuit Diagram

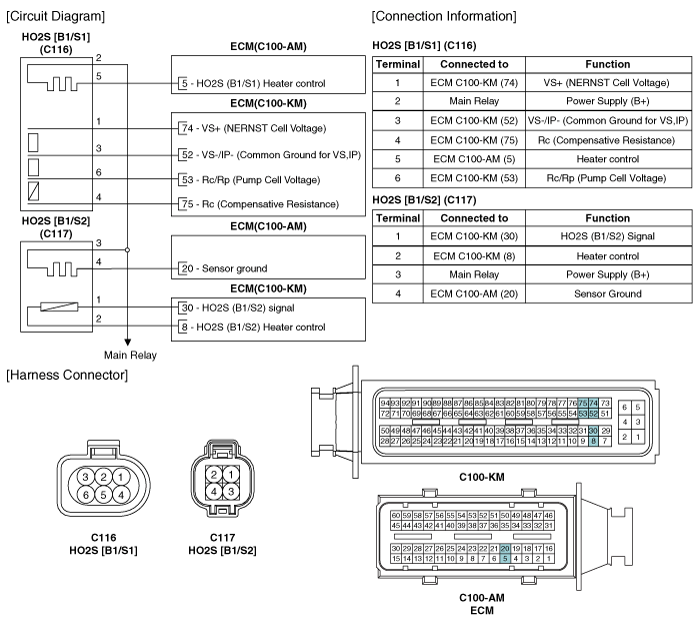

(M/T)

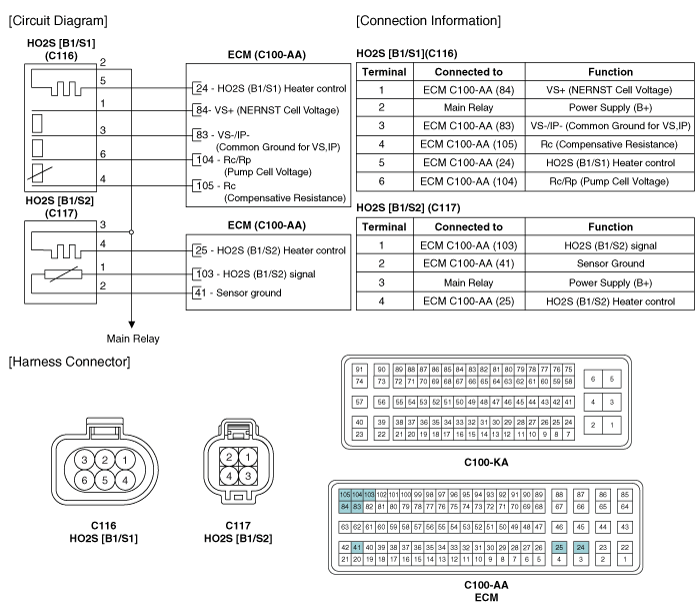

(A/T)

Heated Oxygen Sensor (HO2S) Troubleshooting
Signal Waveform ...

Heated Oxygen Sensor (HO2S) Repair procedures
Inspection 1. Turn the ignition switch OFF. 2. Disconnect the HO2S connector. 3. Measure resistance betwe ...
