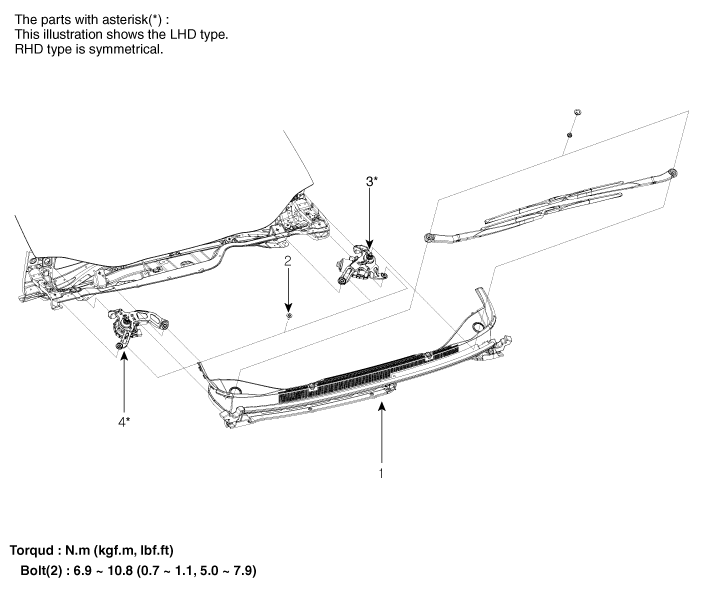

Component Location

1. Cowl top cover
2. Bolt

3. Windshield wiper motor & link assembly (Driver's side)
4. Windshield wiper motor & link assembly (Passenger's side)

Front Wiper Arm Repair procedures

Removal If you remove a wiper arm, replace it with a new one. If you reassemble the removed arm, its s ...

Front Wiper Motor Description and operation

Description 1. How to diagnose a problem with wiper motors (1) Only the driver side wiper motor works properly. ...
