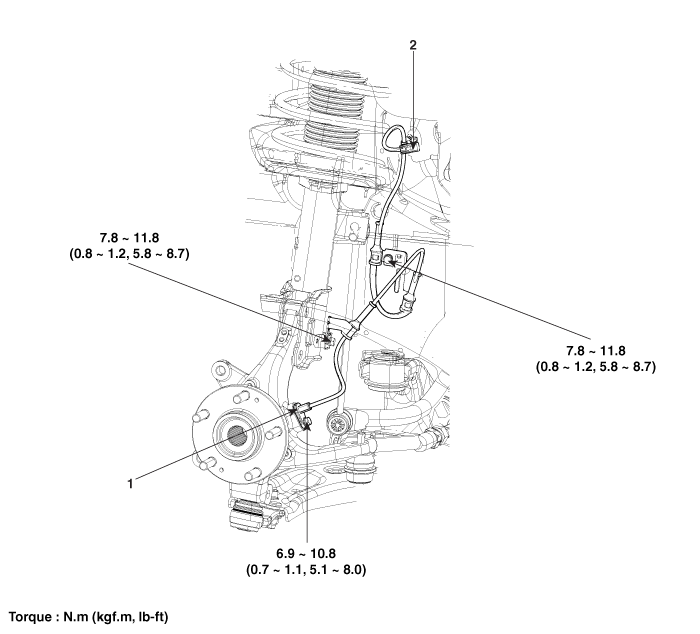

Kia Carens: ABS(Anti-Lock Brake System) / Front Wheel Speed Sensor Components and components location

ABS Control Module Repair procedures

Removal 1. Turn the ignition switch OFF and disconnect the negative (-) battery cable. 2. Remove the battery (A) and ECM (B). ...

Front Wheel Speed Sensor Repair procedures

Removal 1. Remove the front wheel and tire. Tightening torque: 88.3 ~ 107.9 N.m (9.0 ~ 11.0 kgf.m, 65.1 ~ 79.6 lb-ft) ...
