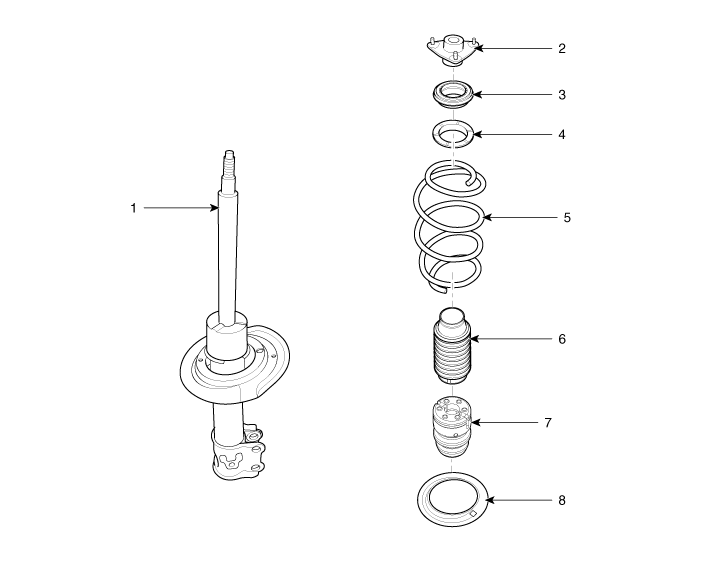

Components

1. Strut assembly
2. Insulator
3. Strut bearing
4. Spring upper pad

5. Coil spring
6. Dust cover
7. Bumper rubber
8. Spring lower pad

Components and components location

Components Location 1. Drive shaft 2. Lower arm 3. Front disk 4. Front strut assembly 5. Stabilizer bar 6. Steering gea box 7. Sub frame 8. ...

Front Strut Assembly Repair procedures

Replacement 1. Loosen the wheel nuts slightly. Raise the vehicle, and make sure it is securely supported. 2. Remove the front w ...
