Kia Carens: Front Suspension System / Components and components location

Kia Carens RP (2013-2018) Service Manual / Suspension System / Front Suspension System / Components and components location

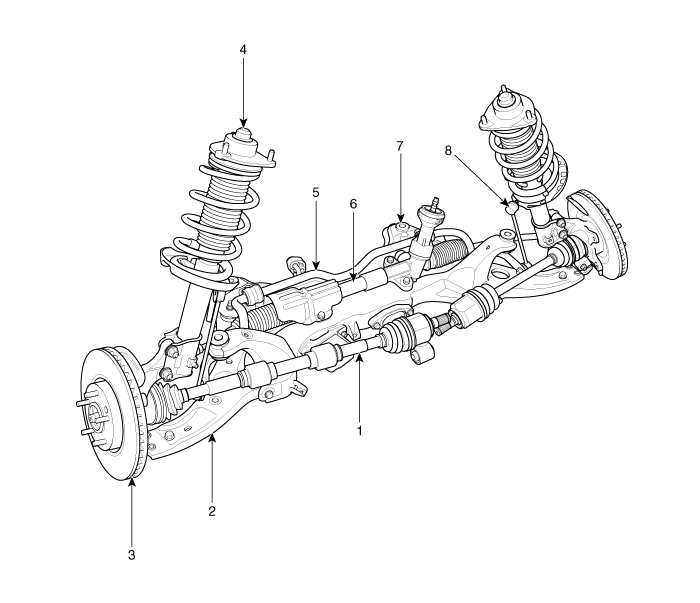

Components Location

1. Drive shaft
2. Lower arm
3. Front disk
4. Front strut assembly
5. Stabilizer bar
6. Steering gea box
7. Sub frame
8. Front stabilizer link

Front Suspension System
...

Front Strut Assembly Components and components location
Components 1. Strut assembly 2. Insulator 3. Strut bearing 4. Spring upper pad 5. Coil spring 6. Dust cover 7. Bumper rubber 8. Spring lowe ...
