Kia Carens: Front seat adjustment - power / Extendable cushion adjustment (for driver`s seat)

Kia Carens RP (2013-2018) Owners Manual / Safety features of your vehicle / Front seat adjustment - manual / Front seat adjustment - power / Extendable cushion adjustment (for driver`s seat)

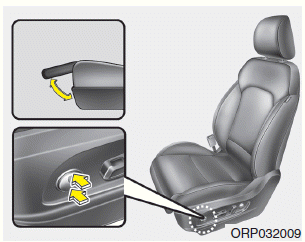

Push the control switch upward or downward to move the seat cushion to the desired position. Release the switch once the seat cushion reaches the desired position.

Lumbar support

The lumbar support can be adjusted by pressing the lumbar support switch on the side of the seat. 1. Press the front portion of the switch to increase support, or the rear portion of the switch, to ...

Headrest

The driver's and front passenger's seats are equipped with a headrest for the occupant's safety and comfort. The headrest not only provides comfort for the driver and front passenger, but also help ...
