Kia Carens: Intake And Exhaust System / Exhaust Manifold Components and components location

Kia Carens RP (2013-2018) Service Manual / Engine Mechanical System / Intake And Exhaust System / Exhaust Manifold Components and components location

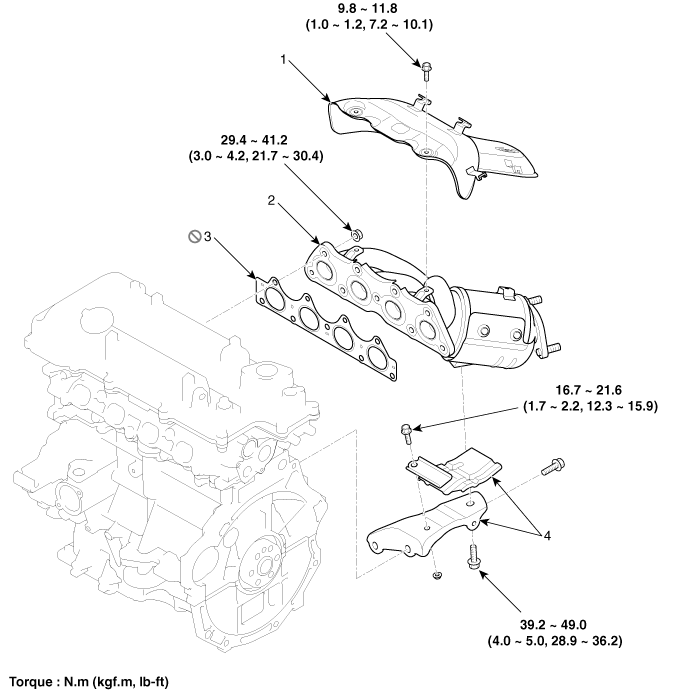

Components

1. Heat protector
2. Exhaust manifold

3. Gasket
4. Exhaust manifold stay
