Kia Carens: Maintenance / Engine compartment
.png)

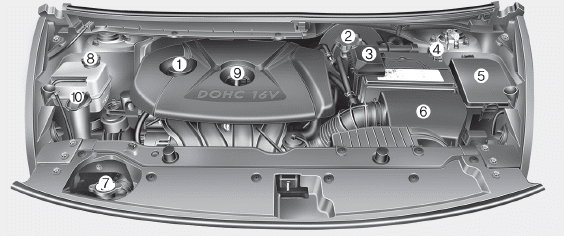

■ Gasoline engine - 1.6 GDI
.png)

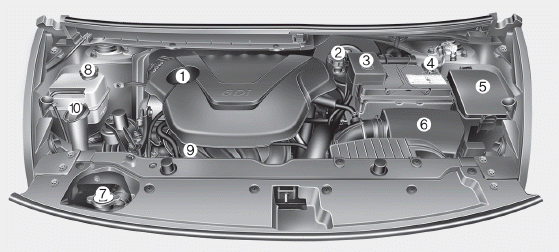

■ Gasoline engine - 2.0 GDI
.png)

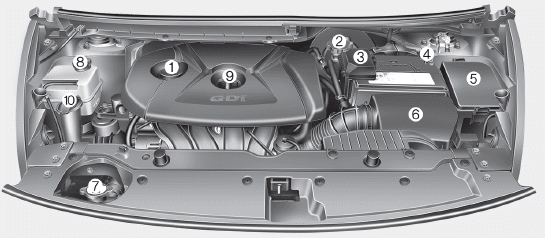

■ Gasoline engine - 2.0 MPI
1. Engine oil filler cap
2. Brake/clutch fluid reservoir
3. Positive battery terminal
4. Negative battery terminal
5. Fuse box
6. Air cleaner
7. Radiator cap
8. Engine coolant reservoir
9. Engine oil dipstick
10. Windshield washer fluid reservoir
.png)

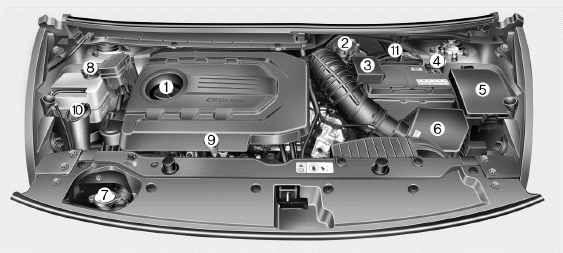

■ Diesel engine -1.7L
1. Engine oil filler cap
2. Brake/clutch fluid reservoir
3. Positive battery terminal
4. Negative battery terminal
5. Fuse box
6. Air cleaner
7. Radiator cap
8. Engine coolant reservoir
9. Engine oil dipstick
10. Windshield washer fluid reservoir
11. Fuel filter
You should exercise the utmost care to prevent damage to your vehicle and injury
to yourself whenever performing any maintenance or inspection procedures.
Inadequate, incomplete or insufficient servi ...
