Kia Carens: Tailgate / Emergency tailgate safety release

Kia Carens RP (2013-2018) Owners Manual / Features of your vehicle / Tailgate / Emergency tailgate safety release

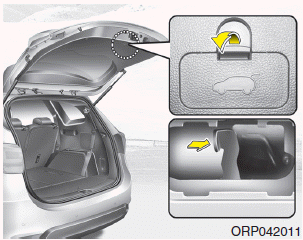

Your vehicle is equipped with the emergency tailgate safety release lever located on the bottom of the tailgate. When someone is inadvertently locked in the luggage compartment. The tailgate can be opened by doing as follows:

1. Remove the cover.

2. Push the release lever to the right.

3. Push up the tailgate.

WARNING

For emergencies, be fully aware of the location of the emergency tailgate safety release lever in the vehicle and how to open the tailgate if you are accidentally locked in the luggage compartment.
No one should be allowed to occupy the luggage compartment of the vehicle at any time. The luggage compartment is a very dangerous location in the event of a crash.
Use the release lever for emergencies only. Use with extreme caution, especially while the vehicle is in motion.

Closing the tailgate

Lower and push down the tailgate firmly. Make sure that the tailgate is securely latched. WARNING Make sure your hands, feet and other parts of your body are safely out of the way before closing th ...
