Kia Carens: Cylinder Head Assembly / Cylinder Head Cover Components and components location

Kia Carens RP (2013-2018) Service Manual / Engine Mechanical System / Cylinder Head Assembly / Cylinder Head Cover Components and components location

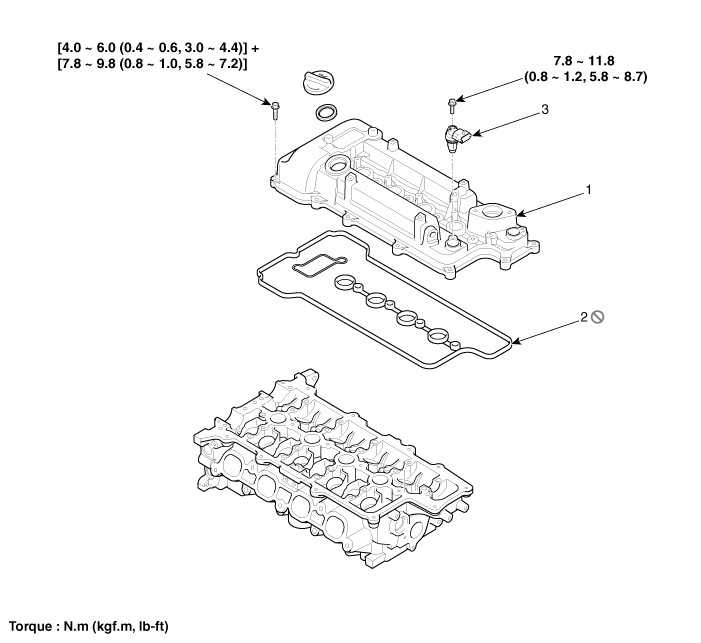

Components

1. Cylinder head cover
2. Cylinder head cover gasket

3. Cam position sensor
