Kia Carens: Cylinder Head Assembly / Cylinder Head Components and components location

Kia Carens RP (2013-2018) Service Manual / Engine Mechanical System / Cylinder Head Assembly / Cylinder Head Components and components location

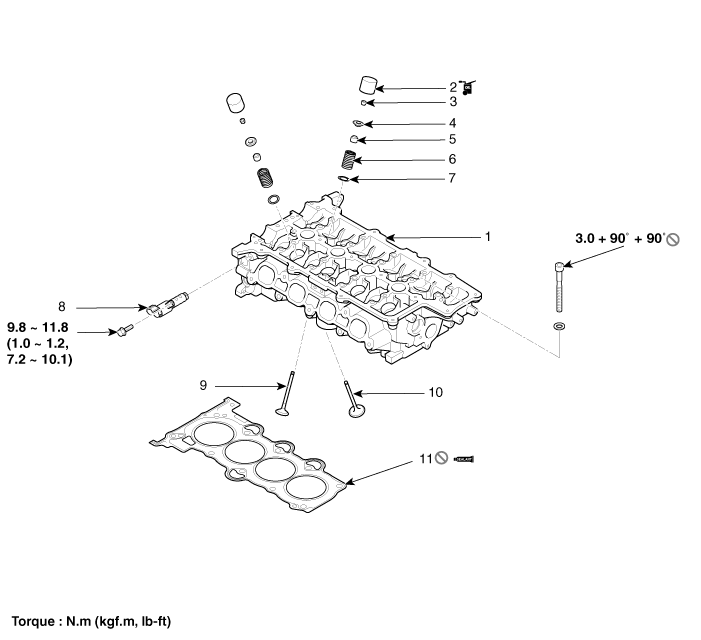

Components

1. Cylinder head assembly
2. MLA
3. Retainer lock
4. Retainer
5. Valve stem seal
6. Valve spring
7. Valve spring seat
8. OCV (Oil Control Valve)
9. Exhaust valve
10. Intake valve
11. Cylinder head gasket
