Kia Carens: Cooling System / Cooling Fan Schematic diagrams

Kia Carens RP (2013-2018) Service Manual / Engine Mechanical System / Cooling System / Cooling Fan Schematic diagrams

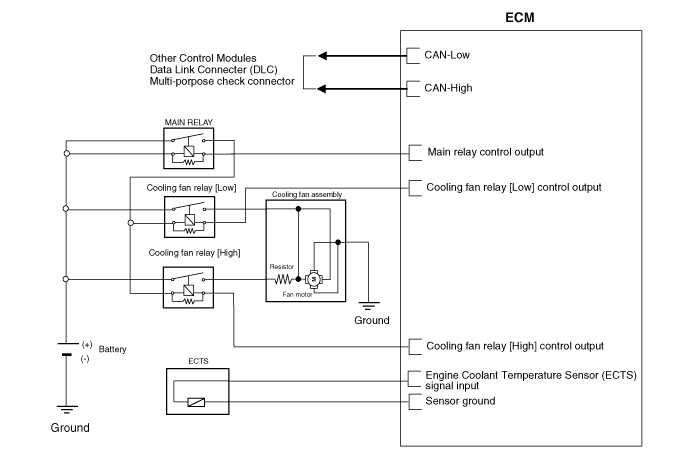

Circuit Diagram

Cooling Fan Specifications

Specifications Item Specification Motor capacity (W) 170 230 Fan type Puller ...

Cooling Fan Repair procedures

Removal and Installation Cooling fan assembly 1. Remove the engine room under cover. (Refer to Engine And Transaxle Assembly - “Engine Room Under Cover� ...
