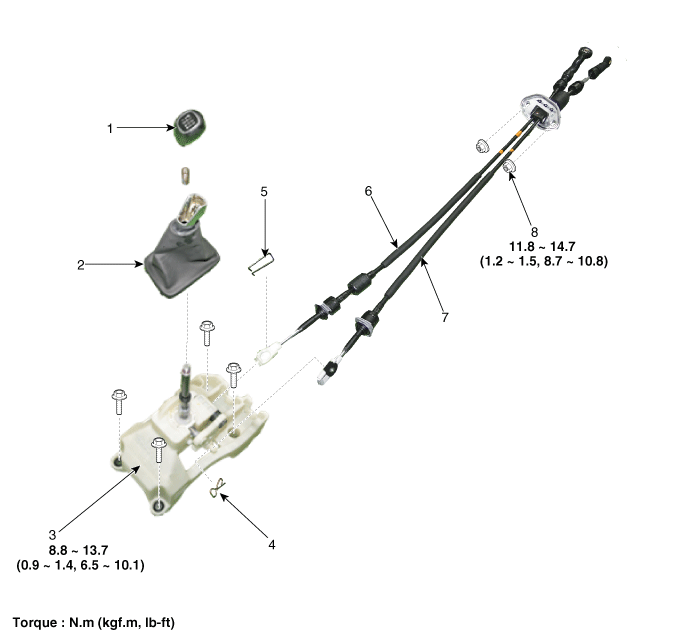

Components

1. Knob
2. Boots
3. Shift lever assembly
4. Select cable clip

5. Shift cable clip
6. Shift cable
7. Select cable
8. Cable retainer

Shift Lever Repair procedures

Removal 1. Disconnect the gear boots and then remove the knob and boots by Rotating counter-clockwise shift lever knob (A). 2. ...

Control Cable Repair procedures

Removal 1. Remove the floor console assembly. (Refer to Body - " Floor Console") 2. Remove the brakcet (A). ...
