Components Location

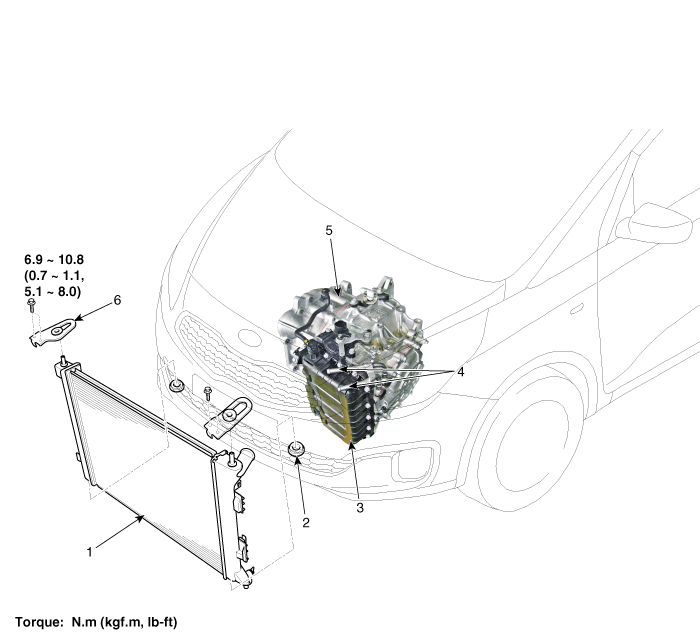

1. Radiator
2. Mounting insulator
3. Valve body cover

4. Oil cooler tube
5. Automatic transaxle
6. Radiator upper mounting bracket

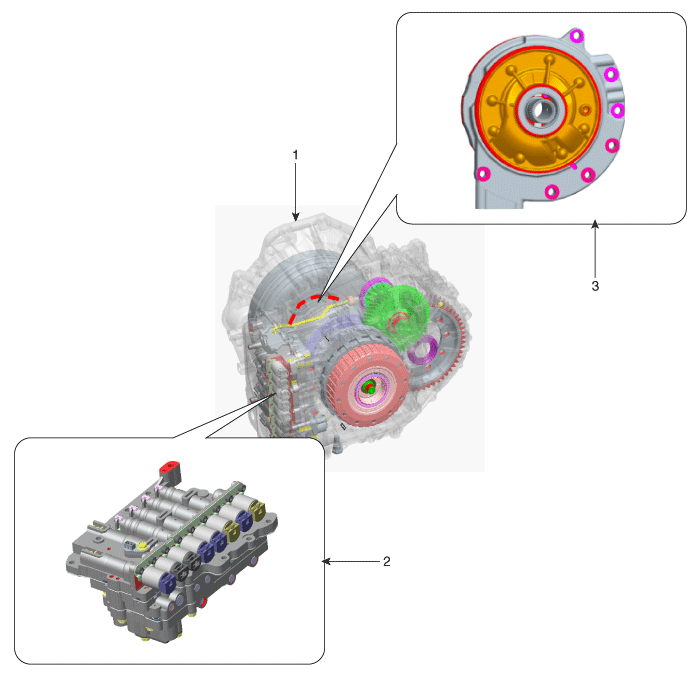

1. Automatic transaxle
2. Valve body assembly
3. Oil pump assembly

Description and operation

Description The hydraulic system consists of oil, an oil filter, an oil pump, and a valve body (valves and solenoid valves). The oil pump is powered by the engine. ATF passes thr ...
