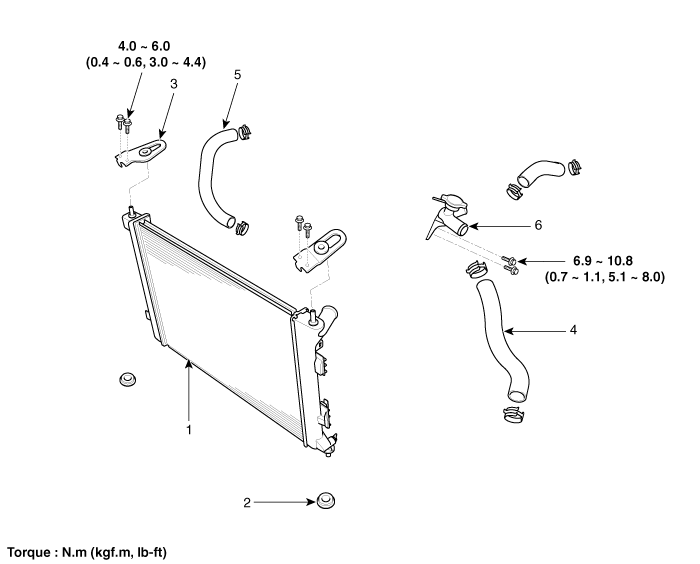

Components

1. Radiator
2. Mounting insulator
3. Radiator upper mounting bracket

4. Radiator upper hose
5. Radiator lower hose
6. Filler neck assembly

Components and components location

Components Location 1. Radiator 2. Mounting insulator 3. Valve body cover 4. Oil cooler tube 5. Automatic transaxle 6. Radiator upper mounting brac ...

Oil Cooler Repair procedures

Removal and Installation 1. Disconnect the battery negative terminal. 2. Remove the air cleaner assembly. (Refer to Intake and ...
