Kia Carens: Fuel Delivery System / Components and components location

Kia Carens RP (2013-2018) Service Manual / Engine Control / Fuel System / Fuel Delivery System / Components and components location

Components Location

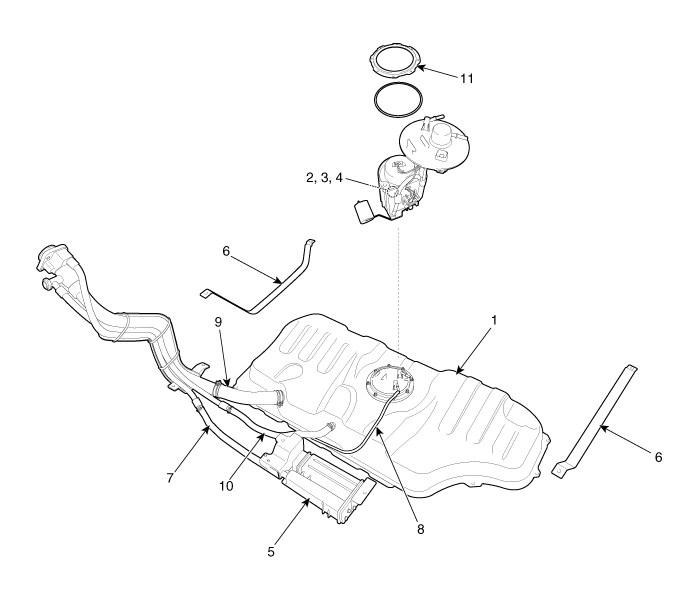

[Fuel tank assembly]

1. Fuel tank
2. Fuel pump
3. Fuel filter
4. Fuel pressure regulator
5. Canister
6. Fuel tank band

7. Ventilation hose
8. Vapor tube
9. Fuel filler hose
10. Leveling hose
11. Fuel pump plate cover

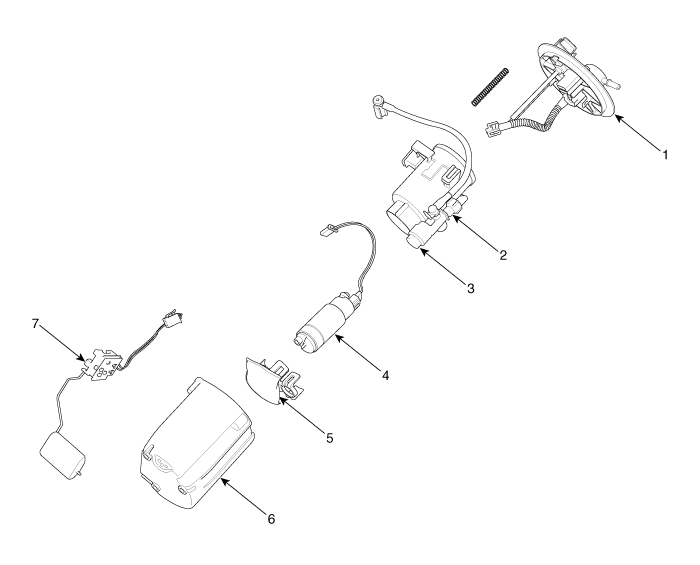

[Fuel pump assembly]

1. Head assembly
2. Fuel filter
3. Fuel pressure regulator
4. Fuel pump motor
5. Pre-filter
6. Reserver-cup
7. Fuel sender

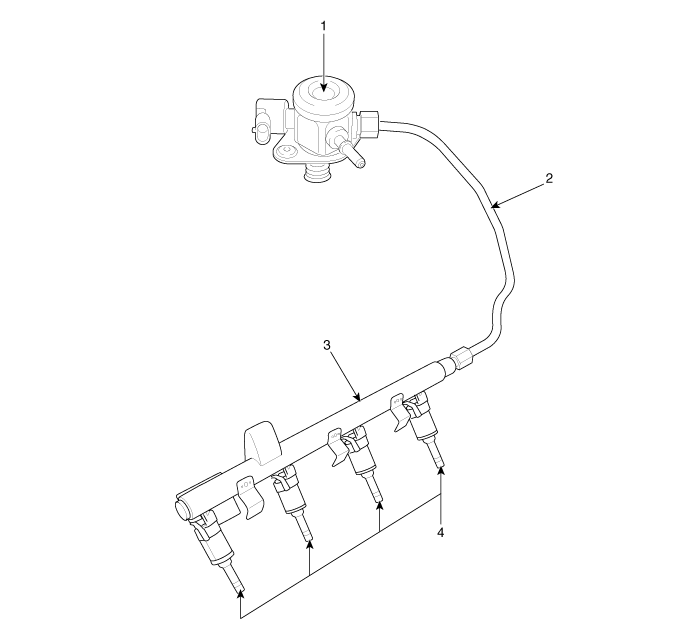

[High Pressure Fuel Line]

1. High Pressure Fuel Pump
2. High Pressure Fuel Pipe
3. Delivery Pipe
4. Injector


In case of removing the high pressure fuel pump, high pressure fuel pipe, delivery pipe, and injector, there may be injury caused by leakage of the high pressure fuel. So don’t do any repair work right after engine stops.
Fuel Delivery System
...

Repair procedures
Fuel Pressure Test (Low pressure system) 1. Release the residual pressure in fuel line. (Refer to Fuel Delivery System - “Release Residual Pressure in Fuel ...
