Kia Carens: Blind Spot Detection system (BSD) / Components and components location

Kia Carens RP (2013-2018) Service Manual / Body Electrical System / Blind Spot Detection system (BSD) / Components and components location

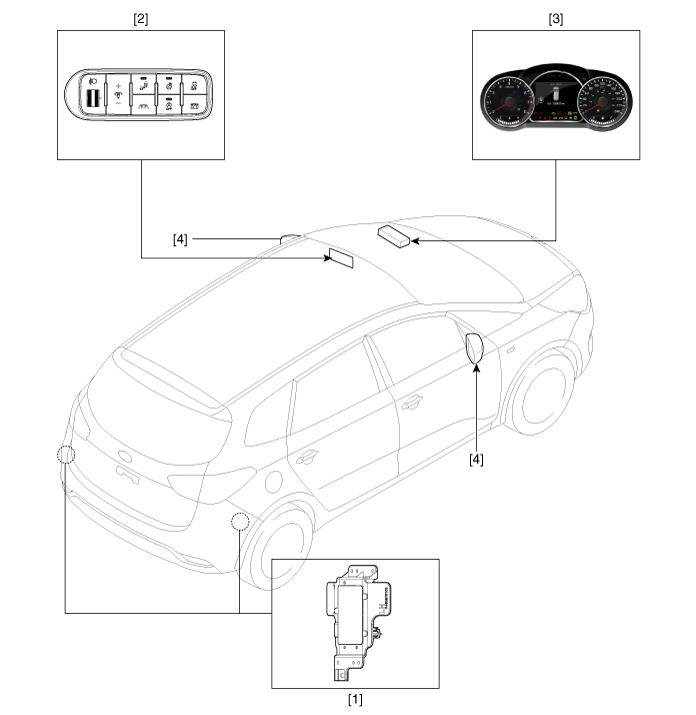

Components

1. Blind Spot Detection (BSD) Unit
2. BSD switch

3. Cluster
4. BSD warning lamp

Specifications

Specifications Items Specification Rated voltage DC 12V Operating voltage 9 - 16V ...

Description and operation

Description BSD is a system that uses two magnetic wave radar sensors attached on the rear panel to measure the distance from the vehicle in the back and senses and sets off ...
