Kia Carens: Hands Free System / Components and components location

Kia Carens RP (2013-2018) Service Manual / Body Electrical System / Hands Free System / Components and components location

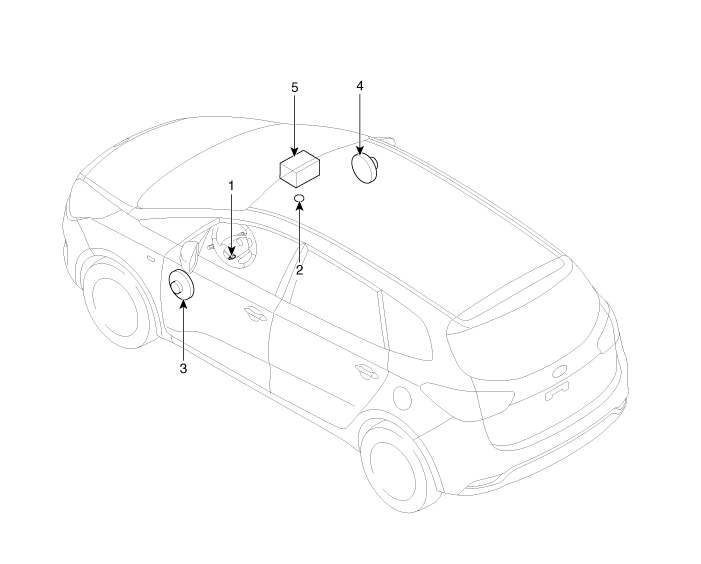

Components

1. Hands free call switch
2. Mic
3. Front left speaker
4. Front right speaker
5. Audio head unit (hands free control)

※ There is no hands free jack. This system supports Bluetooth(wireless system).
