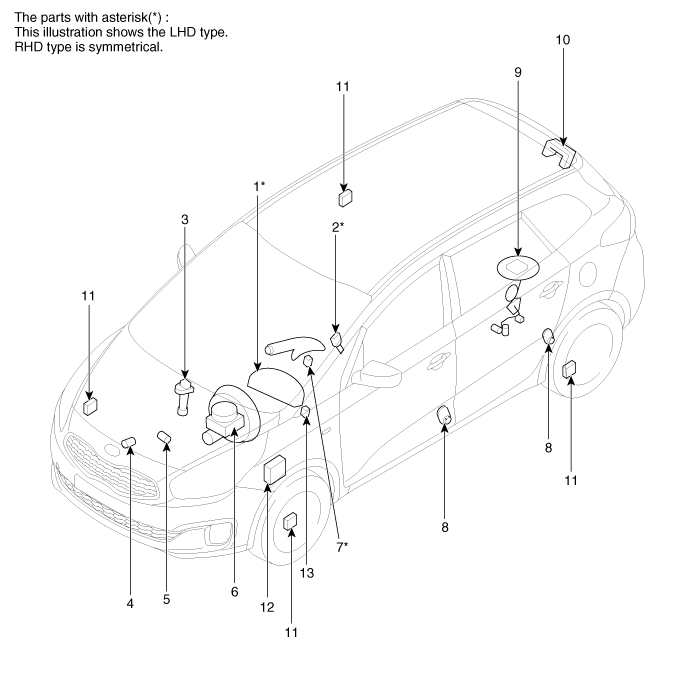

Component Location

1. Cluster assembly
2. Seat belt switch
3. Vehicle speed sensor
4. Engine coolant temperature sender
5. Oil pressure switch
6. Brake fluid level warning switch
7. Parking brake switch
8. Door switch
9. Fuel gauge sender
10. Tailgate switch
11. Wheel speed sensor
12. ABS ECU
13. Active ECO switch

Indicators And Gauges
...

Troubleshooting
Troubleshooting Symptom Possible cause Remedy Speedometer does not operate Cluster fuse (10A) blown Check ...
