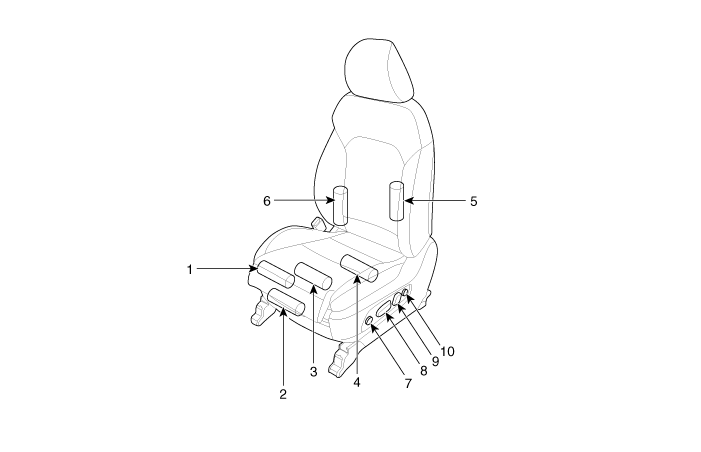

Component Location

1. Front height motor
2. Extension motor
3. Slide motor
4. Rear height motor
5. Lumbar support motor

6. Recline motor
7. Extension switch
8. Power seat switch
9. Recline switch
10. Lumbar support switch

Seat Electrical

...

Power Seat Motor Repair procedures

Inspection Power Seat Motor 1. Disconnect the connectors for each motor. (Refer to Body - "Front Seat Assembly") A : Slide motor ...
