Kia Carens: Keyless Entry And Burglar Alarm / Components and components location

Kia Carens RP (2013-2018) Service Manual / Body Electrical System / Keyless Entry And Burglar Alarm / Components and components location

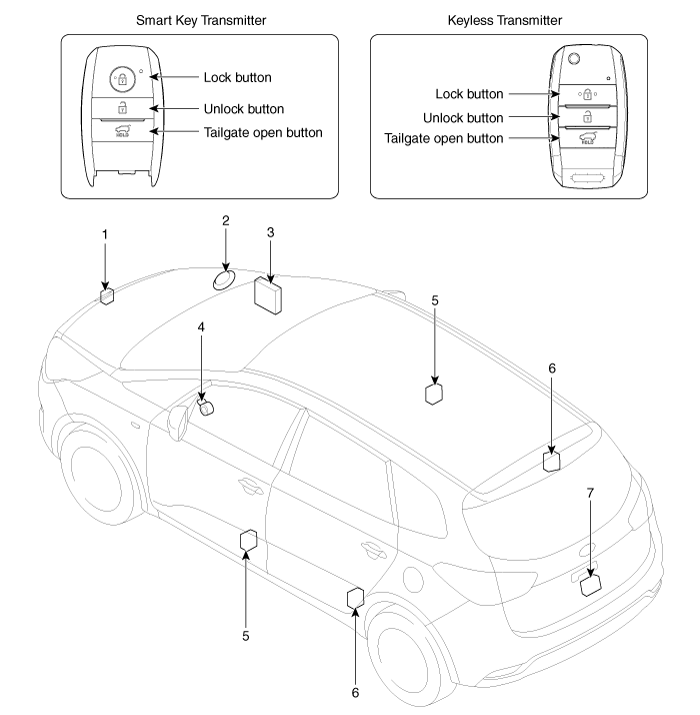

Component Location

1. Hood switch
2. Burglar horn
3. BCM & RF receiver
4. Key warning switch
5. Front door lock actuator & switch
6. Rear door lock actuator & switch
7. Tailgate open switch

Specifications
Specification Item Specification Power source 3V Operating temperature -20°C ~ +60°C (-4°F ~ +14 ...

Description and operation
Description Burglar Alarm State [B/A State] B/A State Description DISARM 1) In "DISARM" ...
