Kia Carens: Multifunction Switch / Components and components location

Kia Carens RP (2013-2018) Service Manual / Body Electrical System / Multifunction Switch / Components and components location

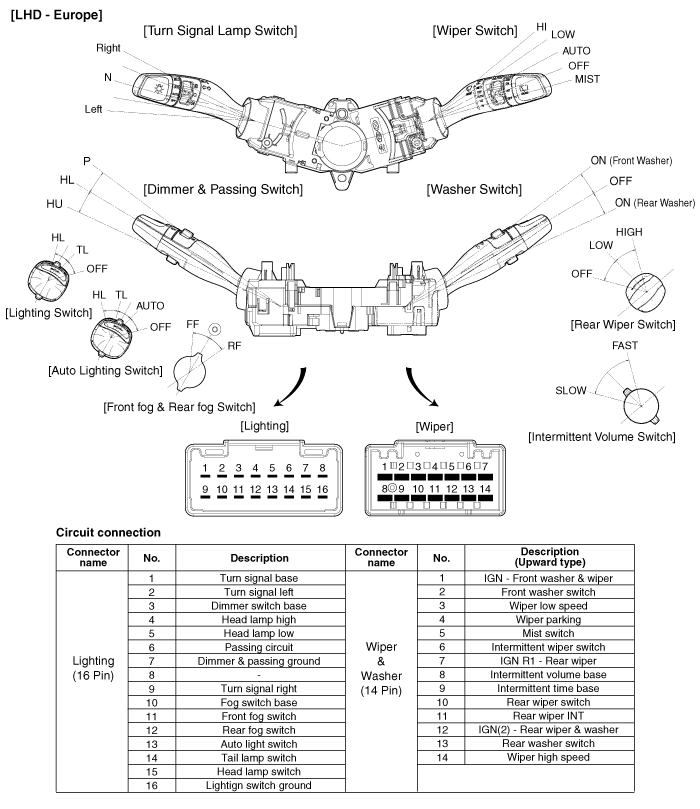

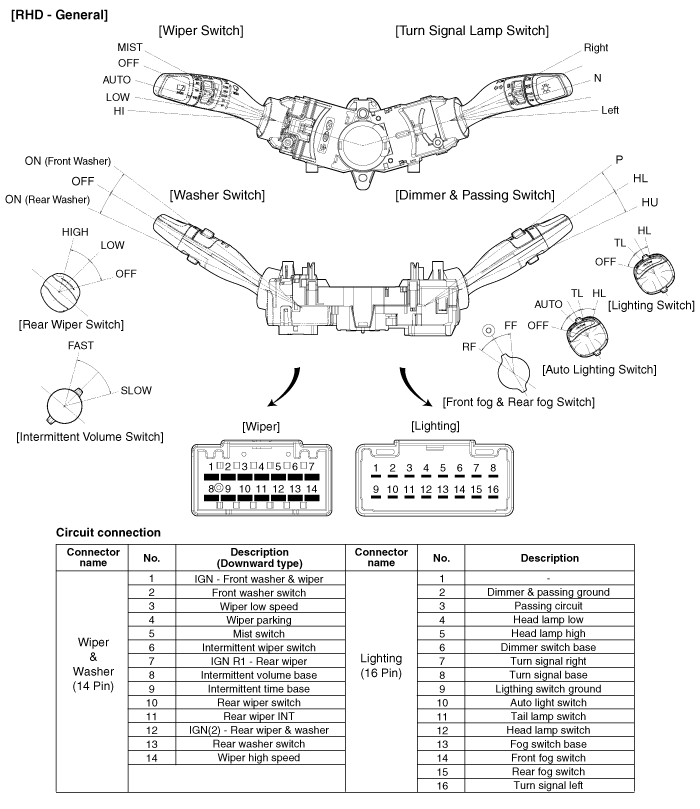

Component

Specifications
Specifications Items Specifications Rated voltage DC 12V Operating temperature range -22 ~ +176°F ...

Repair procedures
Removal 1. Disconnect the negative (-) battery terminal. 2. Remove the steering wheel. (Refer to Steering System - "Steeri ...
