Kia Carens: Rear Bumper / Components and components location

Kia Carens RP (2013-2018) Service Manual / Body (Interior and Exterior) / Rear Bumper / Components and components location

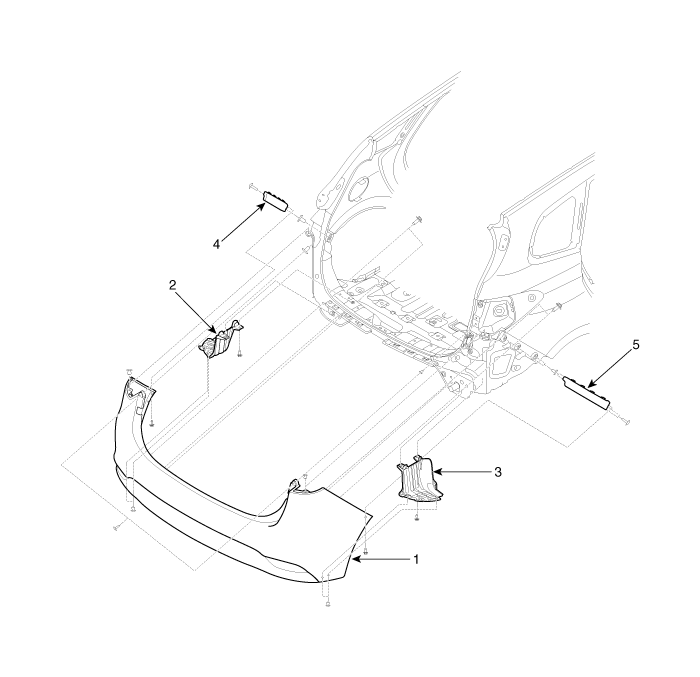

Components

1. Rear bumper cover
2. Rear bunper side under cover [LH]
3. Rear bunper side under cover [RH]

4. Rear bumper side bracket [LH]
5. Rear bumper side bracket [RH]
