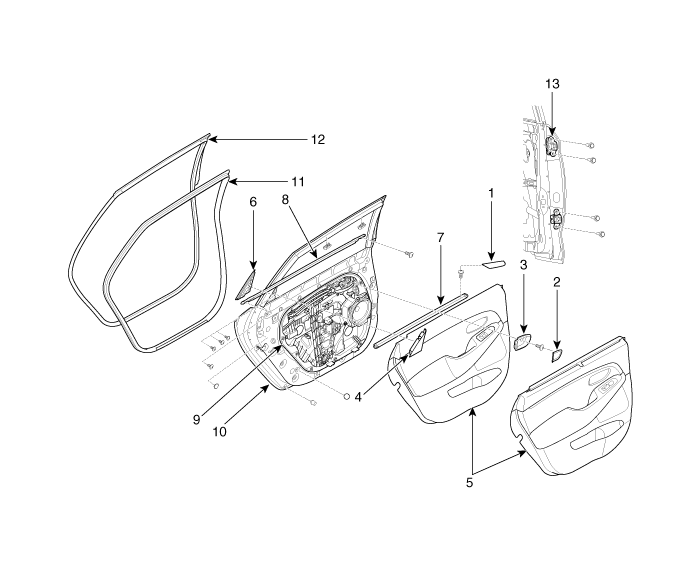

Components

1. Rear door pull cap
2. Rear door inside handle cap
3. Rear door inside handle cover
4. Rear door delta inner cover
5. Rear door trim
6. Rear door delta garnish
7. Rear door belt inside weatherstrip

8. Rear door belt outside weatherstrip
9. Rear door module assembly
10. Rear door panel
11. Rear door body side weatherstrip
12. Rear door side weatherstrip
13. Rear door hinge
