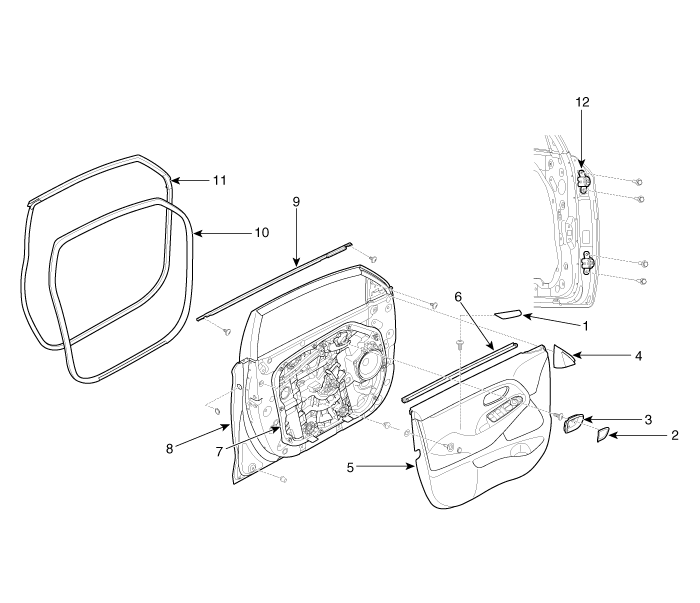

Components

1. Front door pull cap
2. Front door inside handle cap
3. Front door inside handle cover
4. Front door quadrant inner cover
5. Front door trim
6. Front door belt inside weatherstrip
7. Front door module assembly
8. Front door panel
9. Front door belt outside weatherstrip
10. Front door body side weatherstrip
11. Front door side weatherstrip
12. Front door hinge
