Kia Carens: Parking Brake System / Components and components location

Kia Carens RP (2013-2018) Service Manual / Brake System / Parking Brake System / Components and components location

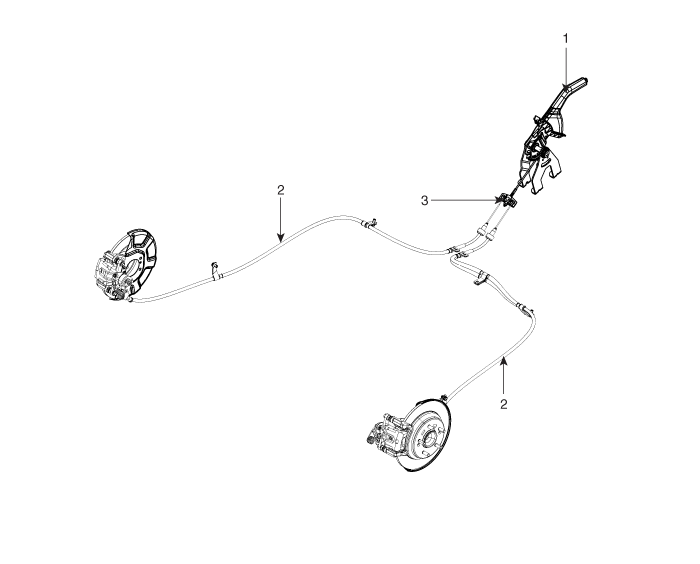

Components

1. Parking brake lever
2. Parking brake cable
3. Equalizer assembly
