Kia Carens: ESP(Electronic Stability Program) System / Components and components location

Kia Carens RP (2013-2018) Service Manual / Brake System / ESP(Electronic Stability Program) System / Components and components location

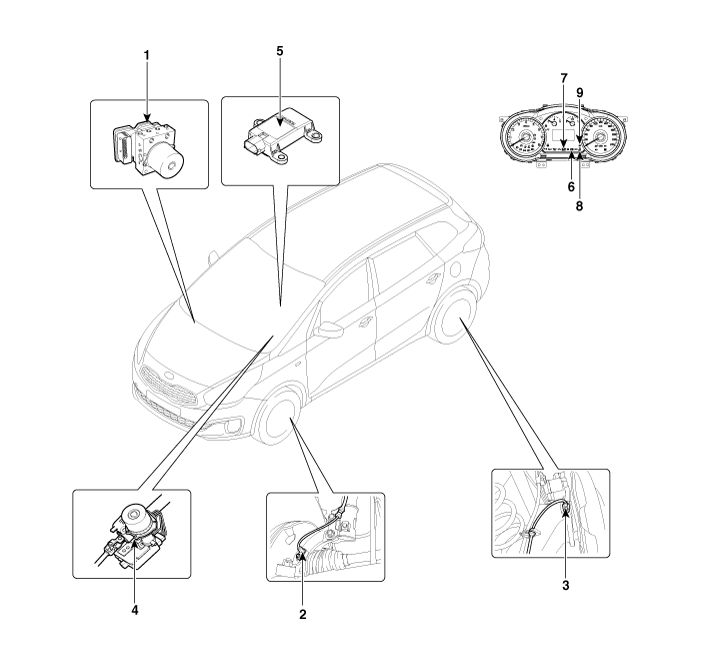

Components

1. HECU module
2. Front wheel speed sensor
3. Rear wheel speed sensor
4. Steering angle sensor
5. Yaw rate & Lateral G sensor

6. ABS Warning lamp
7. Parking brake/EBD warning lamp
8. ESP OFF lamp
9. ESP Function/Warning lamp

ESP(Electronic Stability Program) System

...

Description and operation

Description of ESP Electronic Stability Program (ESP) recognizes critical driving conditions, such as panic reactions in dangerous situations, and stabilizes the vehicle by wheel-in ...
