Kia Carens: Mirror / Outside Rear View Mirror Repair procedures

Kia Carens RP (2013-2018) Service Manual / Body (Interior and Exterior) / Mirror / Outside Rear View Mirror Repair procedures

Replacement

•	Put on gloves to protect your hands.

•	When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.

•	Take care not to scratch the body surface.

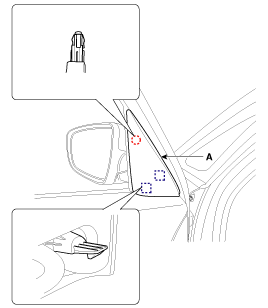

1.	Using a screwdriver or remover, remove the front door quadrant inner cover (A).

2.	Loosen the outside rear view mirror mounting screw (A).

3.	After loosening the mounting bolts, then remove the outside rear view mirror (A).

Disconnect the outside rear view mirror connector (B).

Tightening torque :

6.9~10.8 N.m(0.7~1.1 kgf.m, 5.1~8.0 lb-ft)

Install in the reverse order of removal.

•	Make sure the connector is connected properly.

•	Replace any damaged clips.

Outside Rear View Mirror Components and components location

Component Location 1. Outside rear view mirror ...

Inside Rear View Mirror Components and components location

Component Location 1. Inside rear view mirror ...
