Kia Carens: Brake Line / Components and components location

Kia Carens RP (2013-2018) Service Manual / Brake System / Brake Line / Components and components location

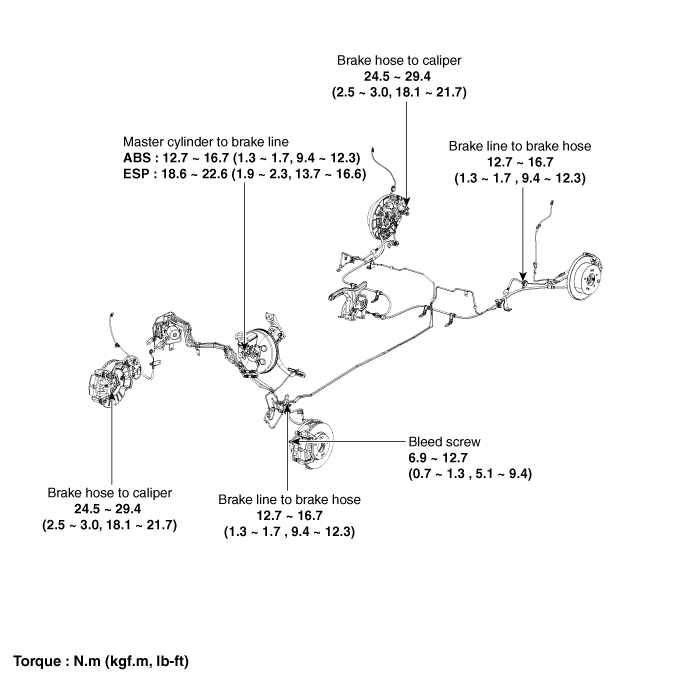

Components

Brake Line
...

Repair procedures
Removal 1. Disconnect the brake fiuid level switch connector, and remove the reservoir cap. 2. Remove the brake fluid from the mast ...
