Kia Carens: Master Cylinder / Components and components location

Kia Carens RP (2013-2018) Service Manual / Brake System / Master Cylinder / Components and components location

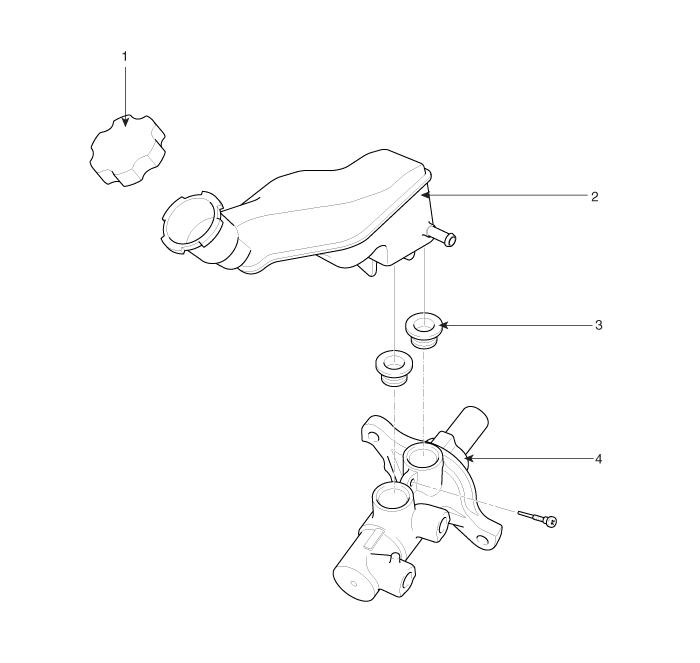

Components

1. Reservoir cap
2. Reservoir

3. Grommet
4. Master cylinder

Master Cylinder

...

Repair procedures

Removal 1. Turm ignition switch OFF and disconnect the negative (-) battery cable. 2. Remove the battery (A) and ECM (B). ...
