Kia Carens: Heater / Mode Control Actuator Repair procedures

Kia Carens RP (2013-2018) Service Manual / Heating,Ventilation And Air Conditioning / Heater / Mode Control Actuator Repair procedures

Inspection

1.	Turn the ignition switch OFF.

2.	Disconnect the mode control actuator connector.

Verify that the mode control actuator operates to the defrost mode when connecting 12V to terminal 3 and grounding terminal 7.

Verify that the mode control actuator operates to the vent mode when connected in reverse.

1. -
2. -
3. Defrost mode
4. Sensor ground

5. Feedback signal
6. Sensor (+ 5V)
7. Vent mode

4.	Connect the mode control actuator connector.

5.	Turn the ignition switch ON.

Check the voltage between terminal 5 and 4.

Specification

Door position	Voltage (V)	Error detecting
Vent	0.3±0.15	Low voltage : 0.1V or less High voltage : 4.9V or less
Defrost	4.7±0.15	Low voltage : 0.1V or less High voltage : 4.9V or less

It will feedback the current position of the actuator to controls.

7.	If the measured voltage is not within specification, substitute with a known-good mode control actuator and check for proper operation.

8.	Replace the mode control actuator if it is proved that there is a problem with it.

Replacement

1.	Disconnect the negative (-) battery terminal.

2.	Remove the crash pad lower panel. (Refer to Body - "Crash Pad Lower Panel")

3.	Remove the driver's side shower duct (A) after loosening the screw.

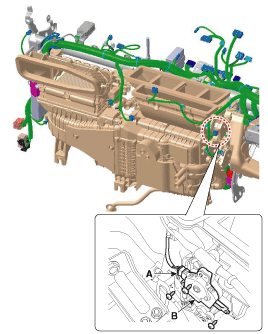

4.	Disconnect the connector (A) and then remove the mode control actuator (B) after loosening the mounting screws.

5.	Install in the reverse order of removal.
