Kia Carens: Restraint / Components and components location

Kia Carens RP (2013-2018) Service Manual / Restraint / Components and components location

Components [LHD]

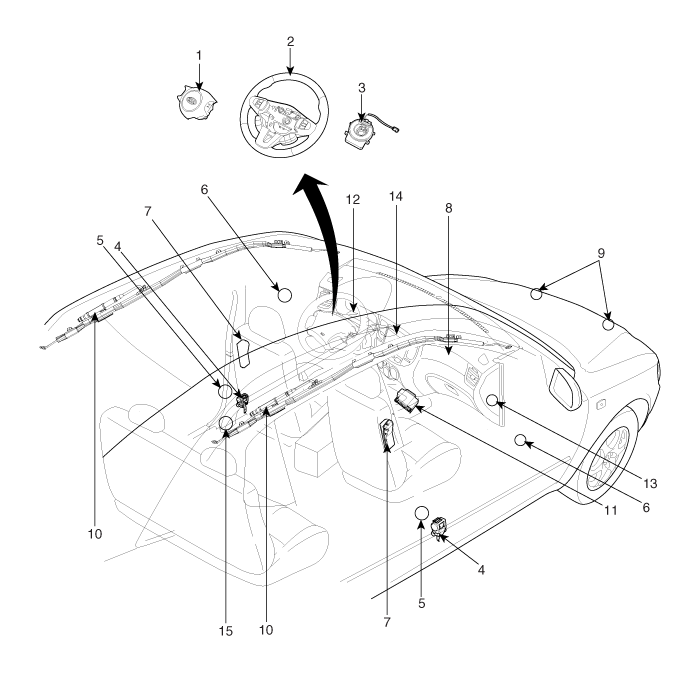

1. Driver Airbag (DAB)
2. Steering Wheel
3. Clock Spring
4. Seat Belt Pretensioner (BPT)
5. Side Impact Sensor (SIS)
6. Pressure Side Impact Sensor (PSIS)
7. Side Airbag (SAB)
8. Passenger Airbag (PAB)
9. Front Impact Sensor (FIS)
10. Curtain Airbag (CAB)
11. Supplemental Restraint System Control Module(SRSCM)
12. Airbag Warning Lamp
13. PAB ON/OFF switch
14. PAB ON/OFF lamp
15. Emergency Fastening Device (EFD)

Components Location

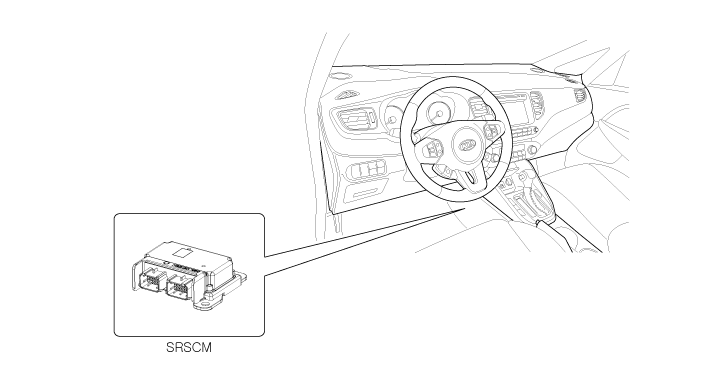

Supplemental Restraint System Control Module (SRSCM)

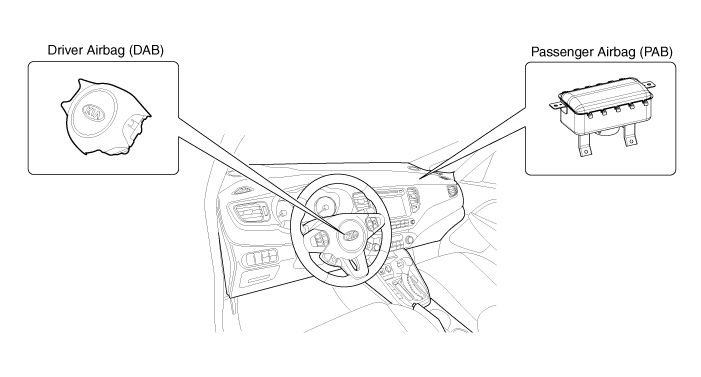

Driver Airbag (DAB) / Passenger Airbag (PAB)

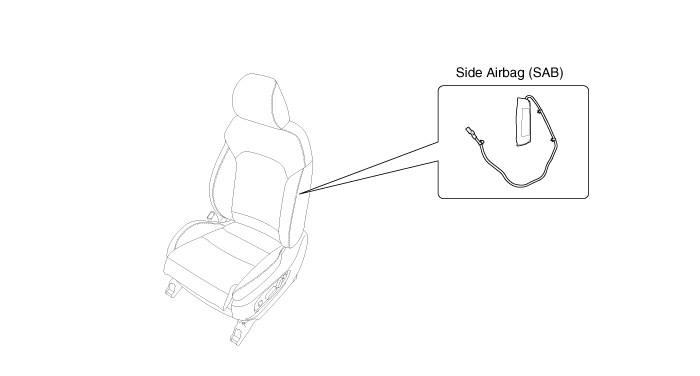

Side Airbag (SAB)

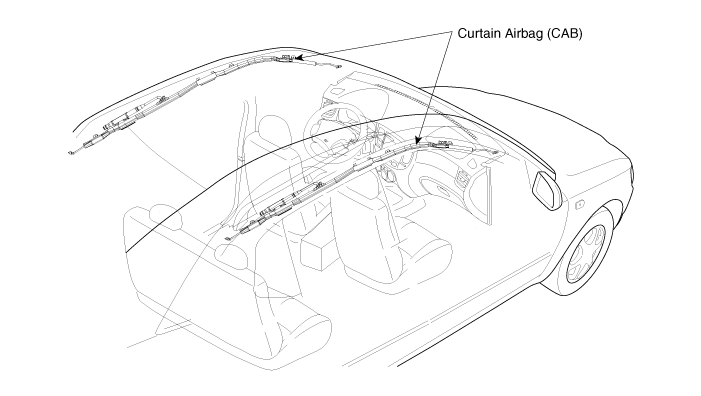

Curtain Airbag (CAB)

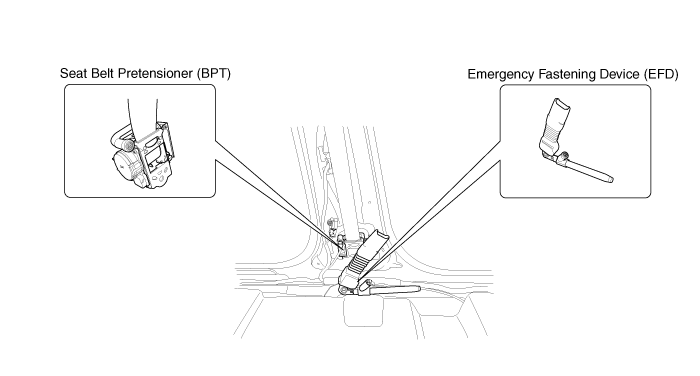

Seat Belt Pretensioner (BPT) / Emergency Fastening Device (EFD)

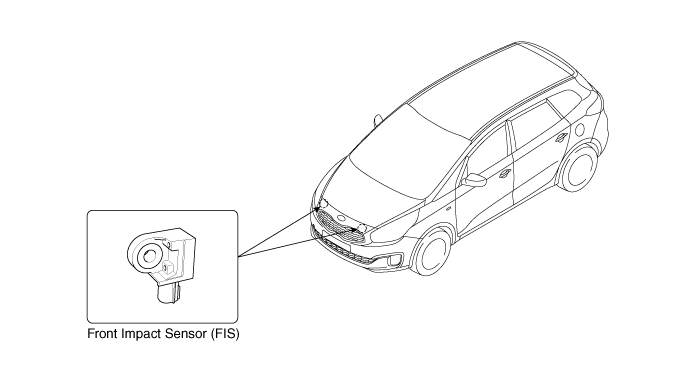

Front Impact Sensor (FIS)

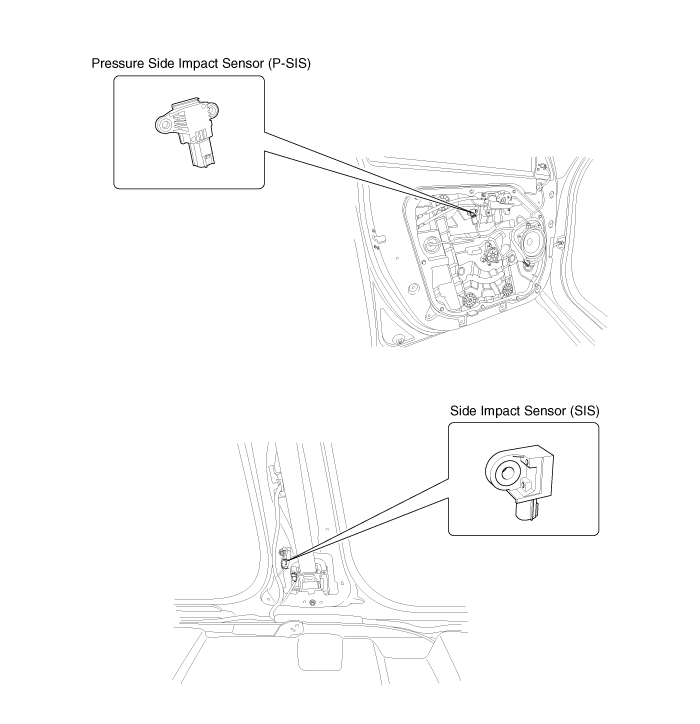

Side Impact Sensor (SIS)

Repair procedures
Component Replacement After Deployment    Before doing any SRS repairs, use the GDS to check for DTCs. Refer to ...

SRSCM
...
