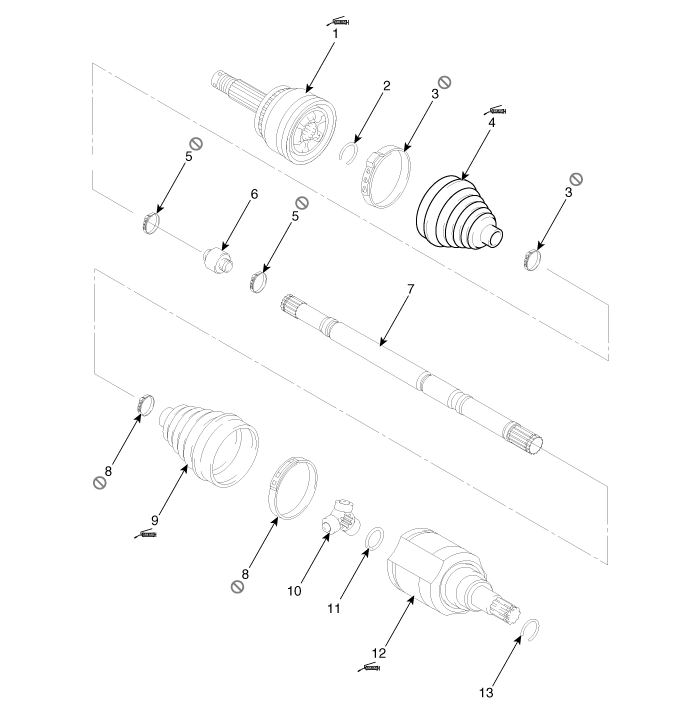

Components

1. BJ assembly
2. BJ circlip
3. BJ boot band
4. BJ boot

5. Dynamic damper band
6. Dynamic damper
7. Shaft
8. TJ boot band

9. TJ boot
10. Spider assembly
11. Snap ring
12. TJ housing

13. TJ circlip

Dynamic Damper Repair procedures

Replacement 1. Remove the front driveshaft. (Refer to Driveshaft Assembly - “Front Driveshaft”) 2. Remove the TJ joint asse ...

BJ Boot Repair procedures

Replacement 1. Remove the front driveshaft. (Refer to Driveshaft Assembly - “Front Driveshaft”) 2. Remove the TJ joint asse ...
