Kia Carens: Charging System / Battery Troubleshooting

Kia Carens RP (2013-2018) Service Manual / Engine Electrical System / Charging System / Battery Troubleshooting

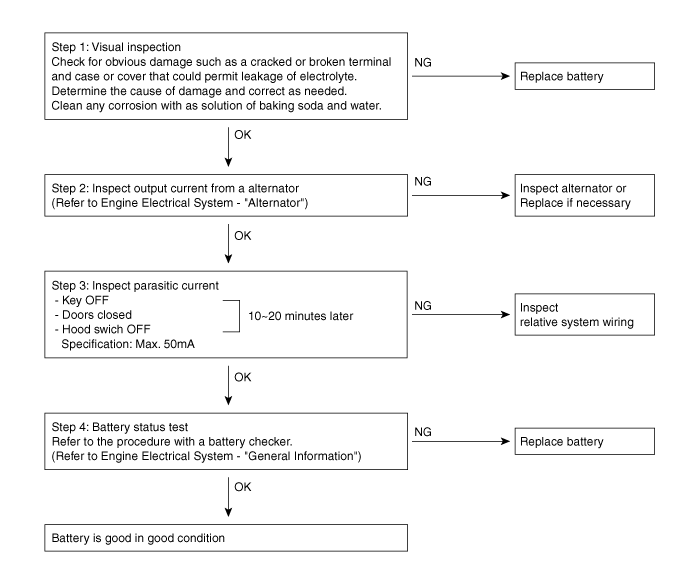

Troubleshooting

Battery Repair procedures
Adjustment Battery Charging In general, vehicle battery charging system has three forms. 1. Constant current charge: The battery voltage gradually rises b ...

Battery Sensor Description and operation
Description Vehicles have many control units that use more electricity. These units control their own system based on information from diverse sensors. It is important to have a ...
