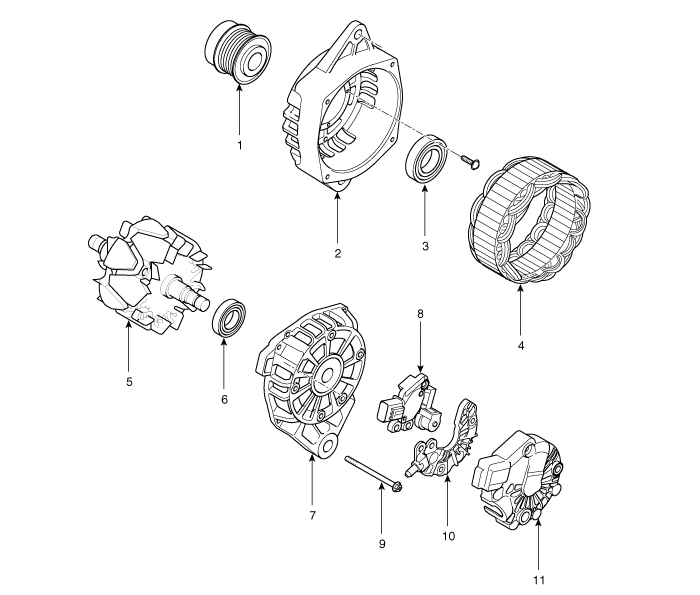

Components

1. OAD (Overrunning Alternator Decoupler)
2. Front Bracket
3. Front Bearing
4. Stator
5. Rotor
6. Rear Bearing
7. Rear Bracket
8. Brush Holder Assembly
9. Through Bolt
10. Rectifier Assembly
11. Rear Cover

Alternator Specifications
Specification Alternator Item Specification Rated voltage 13.5V, 110A Speed in use 1,000 ~ 18, ...

Alternator Schematic diagrams
Circuit Diagram    • COM signal - When controlling the voltage generated, the ECM ...
