Kia Carens: Intake And Exhaust System / Air Cleaner Components and components location

Kia Carens RP (2013-2018) Service Manual / Engine Mechanical System / Intake And Exhaust System / Air Cleaner Components and components location

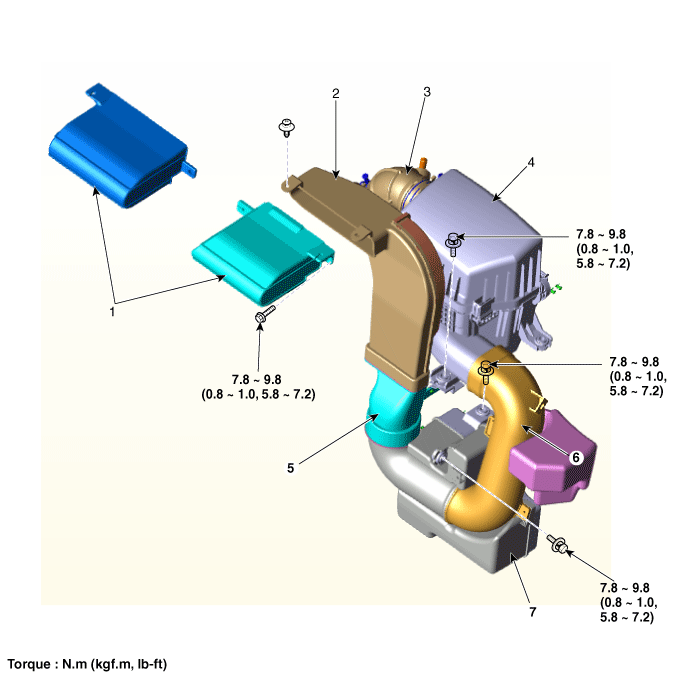

Components

1. Intake shield
2. Air duct A
3. Air intake hose
4. Air cleaner assembly
5. Air intake adapter
6. Air duct B
7. Resonator

Intake And Exhaust System
...

Air Cleaner Repair procedures
Removal and Installation 1. Remove the engine cover. 2. Disconnect the battery negative terminal. 3. Remo ...
