Kia Carens: Air bag - supplemental restraint system / Air bag warning label

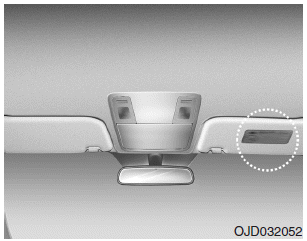

Air bag warning labels are attached to alert driver and passengers of potential
risk of air bag system.
Note that these government warnings focus on the risk of children.We also want
you to be aware of the risks adults are exposed to which have been described in
previous pages.
Never let passengers ride in the cargo area or on top of a foldeddown back
seat. All occupants should sit upright, fully back in their seats with their
seat belts on and their feet on the floor. ...
