Kia Carens: Automatic Transaxle Control System / 35R Clutch Control Solenoid Valve(35R/C_VFS) Schematic diagrams

Kia Carens RP (2013-2018) Service Manual / Automatic Transaxle System / Automatic Transaxle Control System / 35R Clutch Control Solenoid Valve(35R/C_VFS) Schematic diagrams

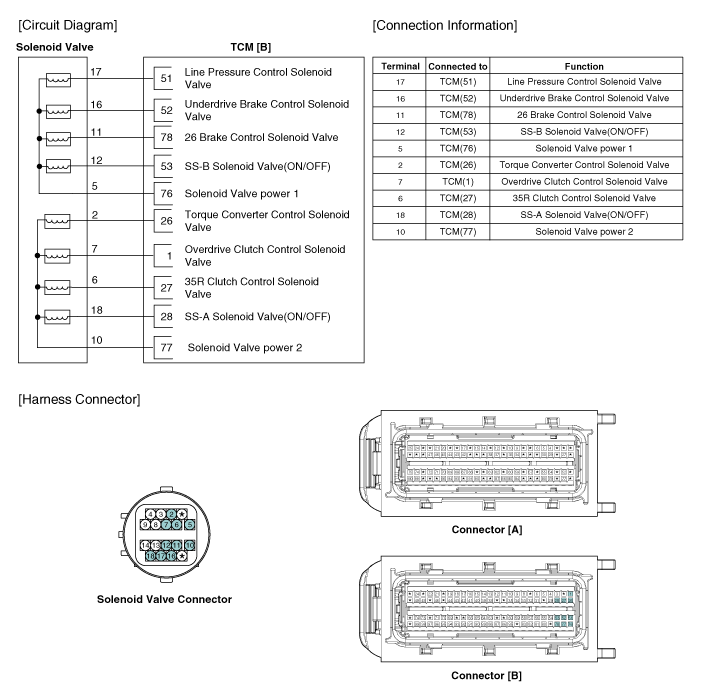

Circuit Diagram

35R Clutch Control Solenoid Valve(35R/C_VFS) Description and operation
Description • 35R clutch control solenoid valve is a Variable Force Solenoid (VFS) type. • When TCM supplies variable current t ...

35R Clutch Control Solenoid Valve(35R/C_VFS) Repair procedures
Inspection 1. Turn ignition switch OFF. 2. Remove the air cleaner assembly. (Refer to Engine Mechanical System - "Air Clea ...
