Kia Carens: Automatic Transaxle Control System / Transaxle Oil Temperature Sensor Schematic diagrams

Kia Carens RP (2013-2018) Service Manual / Automatic Transaxle System / Automatic Transaxle Control System / Transaxle Oil Temperature Sensor Schematic diagrams

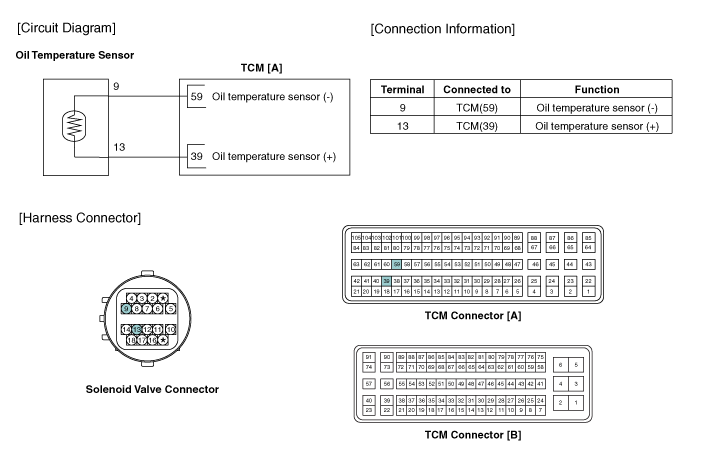

Circuit Diagram

Transaxle Oil Temperature Sensor Description and operation
Description • The sensor used is a thermistor (NTC) in which resistance changes with temperature variation. • The TCM supplies ...

Transaxle Oil Temperature Sensor Repair procedures
Inspection 1. Turn ignition switch OFF. 2. Remove the air cleaner assembly. (Refer to Engine Mechanical System - "Air clea ...
