Kia Carens: Ignition System / Spark Plug Description and operation

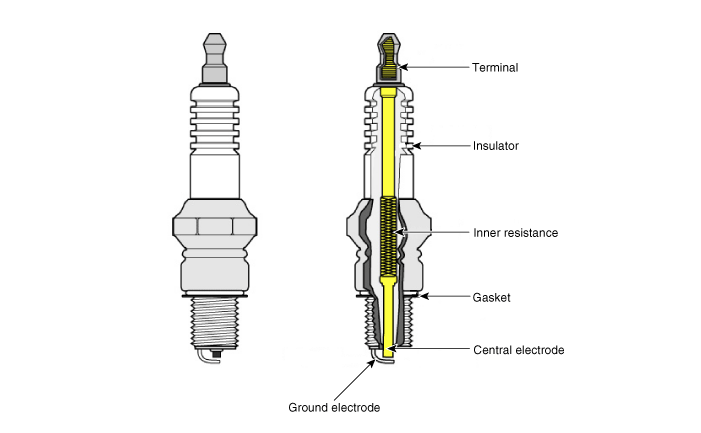

A spark plug is a device for delivering electric current from an ignition system to the combustion chamber of a spark-ignition engine to ignite the compressed fuel/air mixture therein by means of an electric spark, while containing combustion pressure within the engine. A spark plug has a metal threaded shell, electrically isolated from a central electrode by a porcelain insulator.

Ignition Coil Repair procedures

Removal 1. Disconnect the battery nagative terminal. 2. Remove the engine cover. 3. Disconnect the igniti ...

Spark Plug Specifications

Specification Item Specification Type SILZKR6B10E Gap 0.9 ~ 1.0 mm (0.035 ~ 0.039 in.) ...
