Kia Carens: Rear seat adjustment / Seatback angle (2nd row seat)

Kia Carens RP (2013-2018) Owners Manual / Safety features of your vehicle / Front seat adjustment - manual / Rear seat adjustment / Seatback angle (2nd row seat)

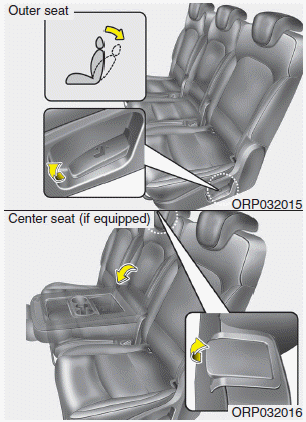

To recline the seatback:

1. Pull up the seatback recline lever.

2. Hold the lever and adjust the seatback of the seat to the position you desire.

3. Release the lever and make sure the seatback is locked in place. (The lever MUST return to its original position for the seatback to lock.)
